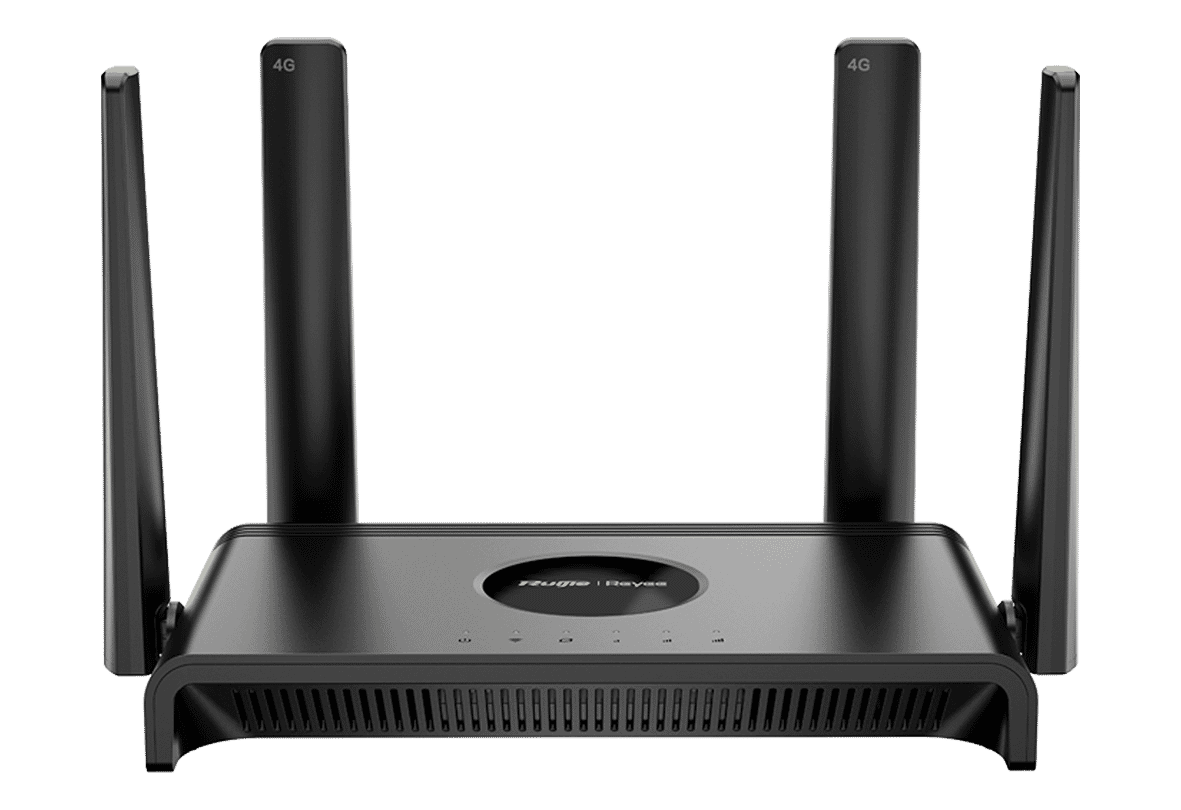

Ruijie RG-EW300T N300 Wireless 4G LTE Router
Ruijie
- Cloud-managed
- Plug and Play
- 3 year guarantee
The Ruijie RG-EW300T N300 is a cloud managed, wireless 4G 300Mbps router that delivers cable-free internet connectivity with a SIM card and data plan. (Read more)
PRODUCT DETAILS
The Ruijie RG-EW300T N300 is a cloud managed, wireless 4G router that delivers cable-free internet connectivity. With a simple SIM card and data plan, this router seamlessly connects to nearby mobile signal towers for instant internet access. With no configuration or complex set up required, the RG-EW300T features a true plug & play design. Once you insert the SIM card and turn on the router, you’re all set to surf the speedy 4G LTE network.
The router is equipped with 4 external antennas to ensure a more stable signal and broader coverage. Along with the 4G LTE modem, it is compatible with most service providers and can provide download speeds of up to 150Mbps.
Features:
- Cloud-managed
- Plug and Play
- 4 External Antennas
- Up to 150Mbps Download Speed
- Three-year Warranty
| Basic | |
| Dimensions (W×D×H) |
175mm×100mm×25mm (6.89 in. ×4.72 in. ×1.06 in. antennas not included) |
| Weight |
0.25kg (packages not included) |
| Wi-Fi Standards |
Wi-Fi 4 (IEEE 802.11n) |
| MIMO |
2.4 GHz, 2×2, MIMO |
| Max. Wi-Fi Speed |
2.4 GHz: 300 Mbps |
| 4G Category |
LTE CAT.4 |
| Max. 4G speed |
Downlink: 150Mbps Uplink: 50Mbps |
| Channel Width |
2.4 GHz: Auto/20/40 MHz |
| Antennas |
2 Detachable External 4G LTE Antennas 2 Fixed External Wi-Fi Antennas |
| Antennas Type |
External Omnidirectional |
| Antennas Gain |
2.4 GHz: 4dBi 4G LTE: 3dBi |
| Port |
1×10/100Base-T WAN/LAN 3×10/100Base-T LAN |
| Card Slot |
1× Micro SIM Card Slot |
| Recommended Users |
8 |
| Max. Users |
32 |
| Power Supply |
DC 12V/1.0A |
| Power Consumption |
< 12 W |
| Wi-Fi Operation Frequency Bands |
802.11b/g/n: 2.400 GHz to 2.483 GHz country-specific restrictions apply |
| Network Type |
WCDMA B1/B5/B8 (2100/850/900 MHz) FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE B38/B40 (2300/2500 MHz) |
| Transmit Power |
2.4GHz Wi-Fi: 2400~2483.5MHz ≤ 20dBm(EIRP) WCDMA B1/B5/B8 ≤ 24dBm FDD-LTE B1/B3/B5/B7/B8/B20/B28≤ 23dBm TDD-LTE B38/B40/B41≤ 23dBm |
| Receive Sensitivity |
2.4GHz Wi-Fi:20MHz 802.11b: -79 dBm(1 Mbps) , 802.11g: -81dBm(6 Mbps), -64 dBm(54 Mbps) 802.11n: -81dBm(MCS0), -63 dBm(MCS7) WCDMA B1/B5: –109 dbm (primary set) WCDMA B8:-108.3 dbm (primary set) LTE-FDD B1: –97.3 dbm (primary set), –98.4 dbm (diversity), –100.2 dbm (primary set + diversity) LTE-FDD B3: –96.4 dbm (primary set), –96.4 dbm (diversity), –99.4 dbm (primary set + diversity) LTE-FDD B5:-96.3 dbm (primary set),-99.1 dbm (diversity),-101.95 dbm (primary set + diversity) LTE-FDD B7:-96.06 dbm (primary set),-96.36 dbm (diversity),-97.6 dbm (primary set + diversity) LTE-FDD B8:-97.4 dbm (main set), -98.2 dbm (diversity), -102.05 dbm (main set + diversity) LTE-FDD B20: –96.2 dbm (primary set), –97.5 dbm (diversity), –100.75 dbm (primary set + diversity) LTE-FDD B28: –96.7 dbm (primary set), –97.9 dbm (diversity), –97.55 dbm (primary set + diversity) LTE-TDD B38:-98.26 dbm (primary set),-97 dbm (diversity),-99.3 dbm (primary set + diversity) |
| Operating Temperature |
-10 °C to +40 °C (14 °F to 104 °F) |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Certifications |
CE, RoHS |
| Wireless |
|
| OFDMA |
- |
| MU-MIMO |
- |
| BSS Colouring |
- |
| Maximum Number of SSIDs |
3 |
| SSID Hiding |
Yes |
| Band Steering |
- |
| Guest Wi-Fi |
Yes |
| WPA/WPA2 |
Yes |
| WPA3 |
Yes |
| Roaming |
Layer 2 Roaming |
| Blocklist |
Yes |
| Reyee Mesh |
- |
| Mesh Pairing by Hardware |
- |
| Mesh Pairing by Mesh Button |
- |
| Mesh Pairing by Eweb |
- |
| Recommended Hop Count |
- |
| Wi-Fi Optimization |
- |
| QoS (WMM) |
Yes |
| WPS |
- |
| Transmission Power Adjustment |
Yes |
| Hardware |
|
| CPU |
MT7628DAN |
| Flash |
16 MB |
| RAM/SDRAM |
64 MB |
| Colour | Black |
| System LED Indicator |
Yes |
| Reyee Mesh LED Indicator |
NA |
| Reyee Mesh Button |
NA |
| Power Button |
NA |
| Features |
|
| Reset Button |
Yes |
| DC Connector Dimensions |
Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 9 mm (Outer Diameter: 0.22 in. Inner Diameter: 0.08 in. Length: 0.35 in. ) |
| WAN |
|
| 3G/4G Router |
Yes |
| Static IP |
Yes |
| DHCP |
Yes |
| PPPoE |
Yes |
| Learning PPPoE Account & Password |
Yes |
| VLAN Tagging |
Yes |
| LAN |
|
| DHCP Server |
Yes |
| Client List |
Yes |
| Static IP Assignment |
Yes |
| Port-Based Flow Control |
Yes |
| Features |
|
| TR069 |
Yes |
| IPv6 |
Yes |
| DDNS |
Yes |
| IPTV |
Yes |
| Alarm |
Not supported in 4G mode, supported in router mode |
| Diagnosis |
Yes |
| UPnP |
Yes |
| ARP Binding |
Yes |
| Features |
|
| Port Mapping |
Yes |
| DMZ Host |
Yes |
| Rate Limitation of Terminals |
Yes |
| Hardware Acceleration |
- |
| MAC Address Cloning |
Yes |
| Cloud Management |
Yes |
| Repeater Mode |
Yes |
| WISP Mode |
Yes |
| Security |
|
| PPTP VPN Server |
- |
| PPTP VPN Client |
- |
| L2TP VPN Client |
- |
| Parental Control |
Time Schedule |
| Protect TCP Flood Attacks |
Yes |
| Protect ICMP Attacks |
- |
| Protect UDP Flood Attacks |
- |
| System |
|
| Default Access/Password |
192.168.110.1 Check the label on the bottom of the device for the default password. |
| URL Access |
Yes |
| Local Upgrade |
Yes |
| Online Upgrade |
Yes |
| APP Upgrade |
Yes |
| Syslog |
Yes |
| Backup |
Yes |
| Factory Reset |
Yes |
| Language |
Chinese English Vietanmese Turkish Indonesian Thai traditioanl Chinese Spanish Russian Arabic Ukrainian Czech Italian |
| Package Contents |
|
| Wireless Router |
1 |
| Power Adapter |
1 |
| Quick Start Guide |
1 |
| Warranty Card |
1 |
| Cat5E UTP Cable |
1 |
| Videos |
|---|
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-EW300T Datasheet |
| Ruijie RG-EW300T Installation Guide |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
