Ruijie RAP72-Wall BE3600 Dual-Band Wall Mount Wi-Fi 7 Access Point
Ruijie
- 4 x 1GE LAN Ports
- Wi-Fi 7 Technology
- 3 year guarantee
The Ruijie RAP72-Wall is an ultra thin Wi-Fi 6 wall-mounted access point which features 4 × Gigabit LAN ports for wired connectivity, and PoE out (Read more)
PRODUCT DETAILS
The Ruijie RG-RAP72-Wall is a compact dual-band Wi-Fi 7 wall-mounted access point designed to deliver ultra-fast wireless connectivity and seamless network performance in hotels, offices, apartments, student accommodation, and other high-density environments. Combining the latest Wi-Fi 7 (802.11be) technology with a discreet wall-plate design, it provides exceptional wireless speeds, lower latency, and improved network capacity for modern connected devices.
Ideal for room-by-room deployments, the RG-RAP72-Wall offers reliable coverage while blending neatly into its surroundings. With high-speed Gigabit connectivity and support for Ruijie's intelligent cloud management platform, installers can deploy, configure, and monitor multiple access points quickly and efficiently from a single interface.

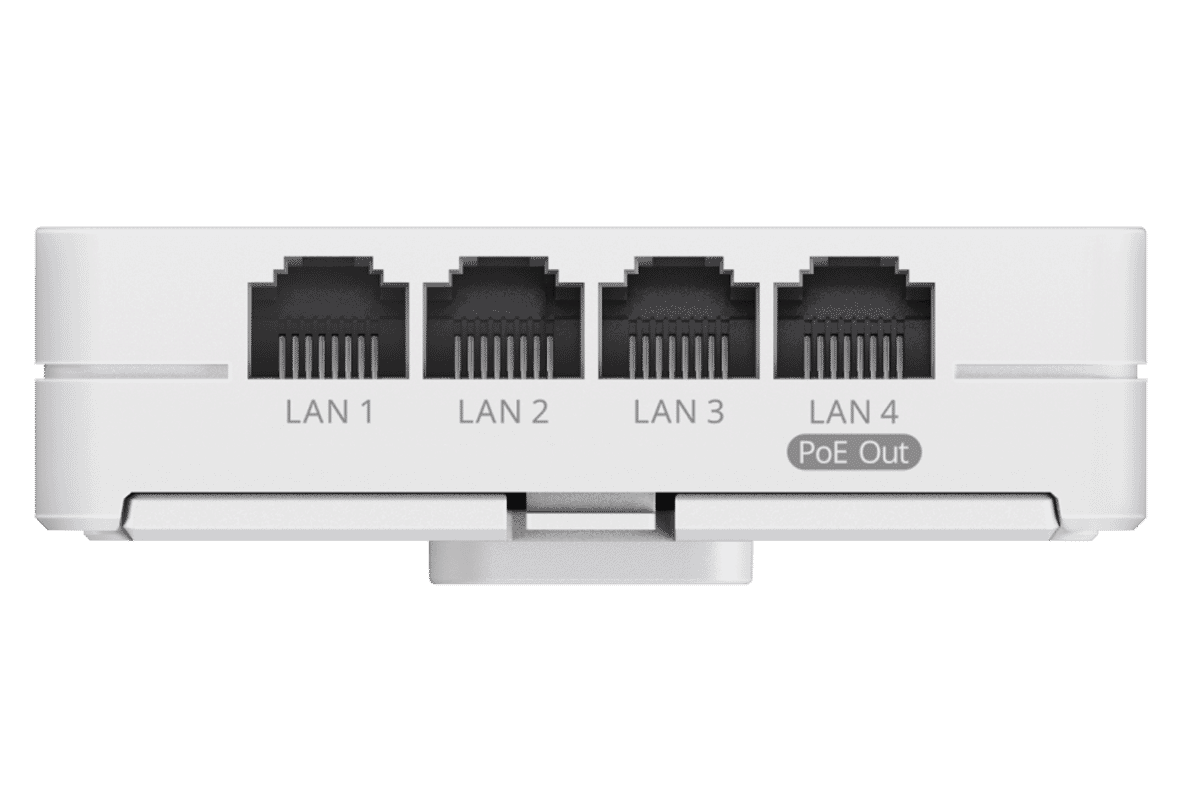

Designed as a multi-port wall plate AP, it features four Gigabit LAN ports, allowing both wireless access and wired connectivity from a single device. One port supports PoE output, enabling you to power additional devices such as IP phones or other network equipment directly from the access point.
Its ultra-slim, low-profile design fits standard EU/UK wall back boxes, making it ideal for clean, professional installations that blend seamlessly into interior spaces. Centralised management via Ruijie Cloud allows for easy configuration, monitoring, and maintenance across single or multi-site deployments.
Features:
- Wi-Fi 7 revolution, providing data rates of up to 3600 Mbps

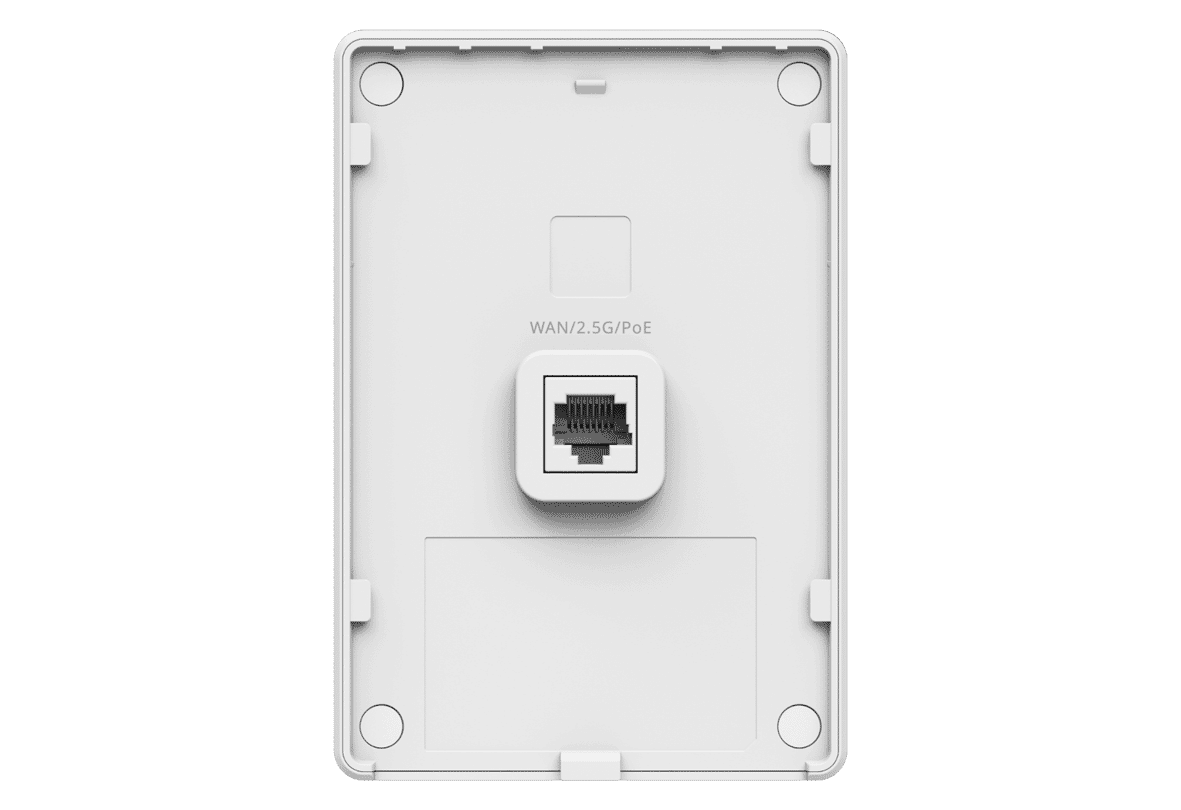

- 2.5 Gbps uplink port for ultra-high-speed indoor access
- PoE output for IP phones and other IoT devices

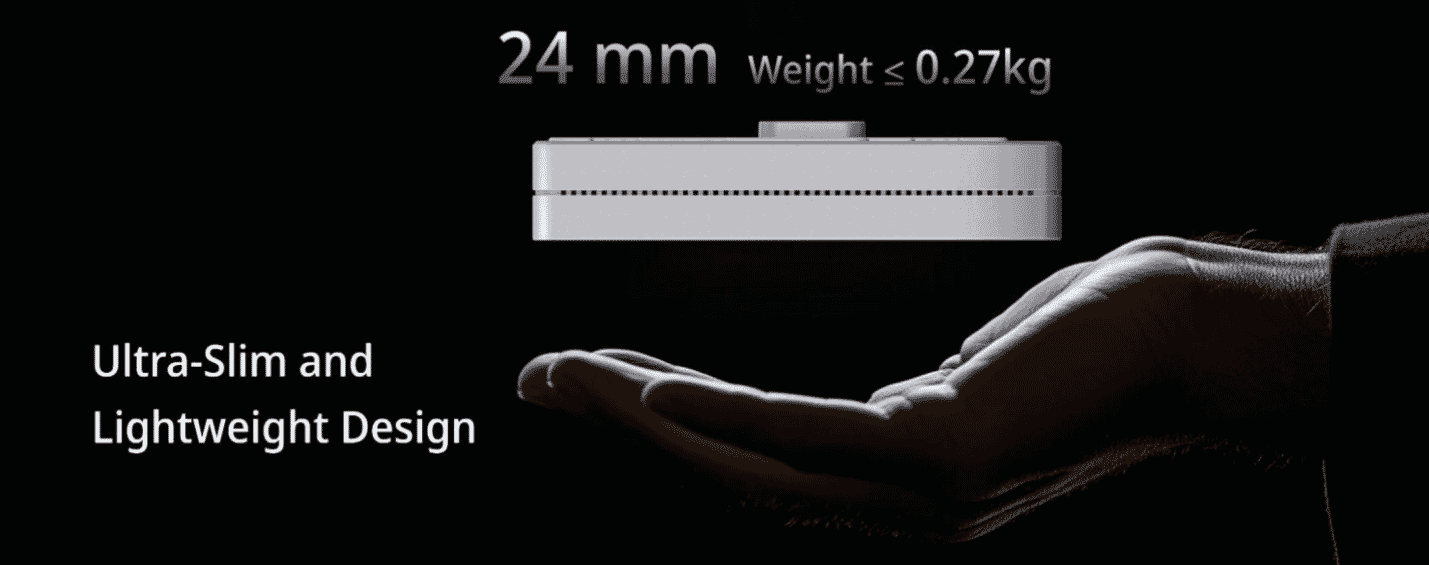

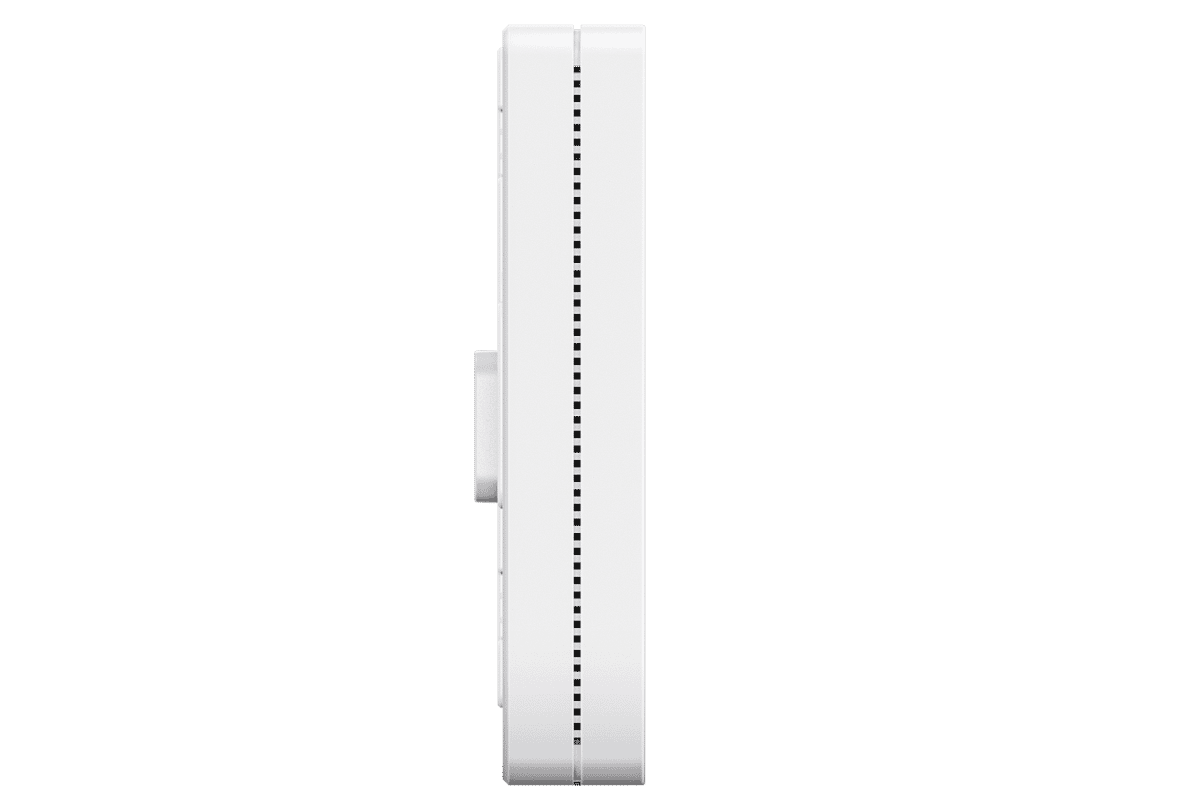

- Compact design with a thickness of 24 mm

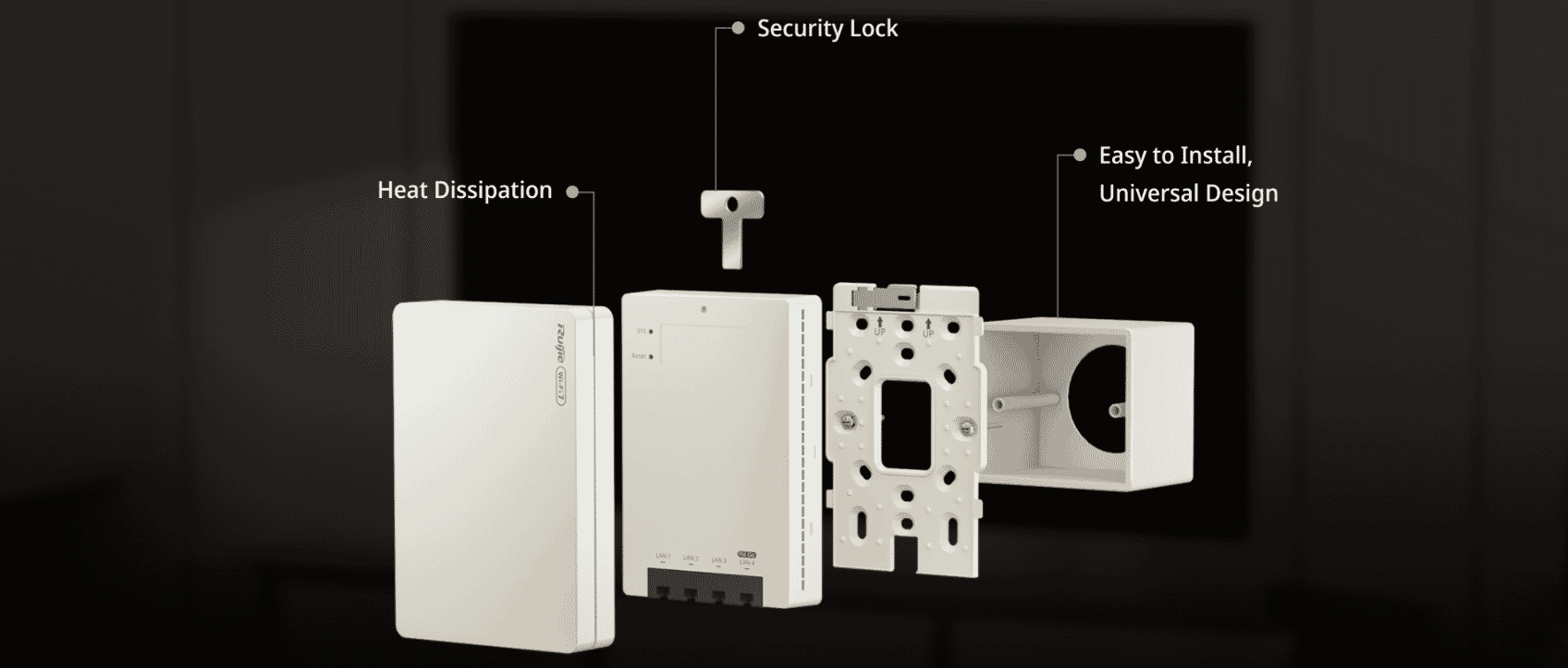

- Anti-theft lock for device protection
| Wi-Fi Radio |
|
| 6 GHz Wi-Fi |
No |
| 5 GHz Wi-Fi |
Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be) |
| 2.4 GHz Wi-Fi |
Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 7 (IEEE 802.11be) |
| Operating band |
IEEE 802.11b/g/n/ax, 2.400 GHz to 2.4835
GHz IEEE 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Available bands vary with countries and regions. To use the preceding frequency bands, ensure that your country or region supports these frequency bands. |
| Radio design |
Dual-radio 4 spatial streams ● 2.4 GHz: 2 x 2, MU-MIMO ● 5 GHz: 2 x 2, MU-MIMO |
| FEM |
iFEM |
| 6 GHz channel width |
No |
| 5 GHz channel width |
Auto/20/40/80/160 MHz |
| 2.4 GHz channel width |
Auto/20/40 MHz |
| Maximum wireless data rate |
3570 Mbps |
| 6 GHz wireless data rate |
No |
| 5 GHz wireless data rate |
2882 Mbps |
| 2.4 GHz wireless data rate |
688 Mbps |
| Maximum transmit power |
Frequency bands and maximum Effective Isotropic Radiated Power (EIRP): Note: Country specific restrictions apply. European Union & United Kingdom: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm 5470–5725 MHz, EIRP ≤ 30 dBm Myanmar: 2400–2483.5 MHz, EIRP ≤ 23 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Thailand: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm 5470–5725 MHz, EIRP ≤ 30 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400–2483.5 MHz, EIRP ≤ 27 dBm 5150–5350 MHz, EIRP ≤ 23 dBm 5725–5825 MHz, EIRP ≤ 23 dBm Egypt: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm |
| Maximum transmit power (6 GHz) |
No |
| Maximum transmit power (5 GHz) |
Combined power: 21.7 dBm (single-stream power: 17 dBm) Note: The transmit power varies according to regulations in different countries and regions. |
| Maximum transmit power (2.4 GHz) |
Combined power: 21 dBm (single-stream power: 17 dBm) Note: The transmit power varies according to regulations in different countries and regions. |
| Coverage range |
55 ㎡ (592.01 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference. |
| Modulation |
OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and
64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024- QAM, and 4096-QAM OFDMA |
| Receive sensitivity |
11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11
Mbps) 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9) 11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9) 11ac: 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9) 11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11) 11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11) 11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11) 11ax: 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11) 11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13) 11be: 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13) 11be: 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13) 11be: 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13) |
| Antenna |
|
| Antenna |
5 GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz
and 5 GHz: 2 built-in omnidirectional antennas |
| Antenna horizontal orientation |
No |
| Antenna vertical orientation |
No |
| Antenna gain (6 GHz) |
No |
| Antenna gain (5 GHz) |
4.56 dBi |
| Antenna gain (2.4 GHz) |
2.84 dBi |
| Dimensions and
Weight |
|
| Product dimensions (W x D x H) |
86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.) (excluding the mounting bracket) |
| Colour |
White |
| Weight |
≤ 0.27 kg (0.60 lbs.) (without packaging materials) |
| Shipping weight |
≤ 0.45 kg (0.99 lbs.) |
| Port
Specifications |
|
| Number of 10/100/1000BASE-T ports |
4 |
| Reset button |
1 |
| LEDs |
1 x system status LED |
| Power Supply and
Consumption |
|
| Power supply |
PoE/PoE+ |
| Local power supply |
No |
| Dimensions of the DC connector |
No |
| PoE In standard |
● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+) |
| Number of PoE Out ports |
1 |
| PoE budget |
10 W (when power source is IEEE 802.3at-compliant) |
| Maximum power consumption |
15 W (excluding PoE output) |
| Environment and
Reliability |
|
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
| Operating humidity |
5% RH to 95% RH (non-condensing) |
| Storage humidity |
5% RH to 95% RH (non-condensing) |
| Mounting options |
Junction box |
| IP rating |
IP41 |
| Surge protection |
Ethernet port: ±2 kV for common mode |
| MTBF |
400,000 hours |
| Certification and
Regulatory Compliance |
|
| RoHS |
Yes |
| Safety compliance |
EN 62368-1 |
| EMC |
EN 55032 EN 55035 EN 61000-3-3 EN 61000-3-2 EN 301489-1 EN 301489-3 EN 301489-17 |
| RF |
EN 300 328 EN 301 893 EN 300 440 Draft EN 303 687 |
| Certification |
CE, FCC, CB, ISED, cTUVus |
| System
Specifications |
|
| Flash memory |
256 MB |
| RAM |
512 MB DDR3 |
| Basic
Configurations |
|
| AP mode |
Yes |
| Routing mode |
Yes |
| Internet access mode |
Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE |
| Interface |
|
| IPTV transparent transmission |
Yes |
| Ethernet
Interface |
|
| PPPoE clients |
Yes |
| Ethernet
Switching |
|
| IEEE 802.1Q VLAN |
Yes |
| WLAN |
|
| Maximum number of associated wireless clients |
64 (2.4 GHz) 211 (5 GHz) 211 (2.4 GHz and 5 GHz enabled) |
| Recommended number of associated wireless clients |
● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled) |
| Maximum number of SSIDs |
8 |
| Radio-based client limiting |
Yes |
| Layer 2 isolation |
Yes |
| OFDMA |
Yes |
| WMM |
Yes |
| DFS |
Yes |
| MLO |
Yes |
| 4K-QAM |
Yes |
| Different SSIDs for the same VLAN |
Yes |
| Enabling/Disabling MLO |
Yes |
| AP load balancing |
Yes |
| Beamforming |
Yes |
| 802.11k/v roaming |
Yes |
| Fast transition (802.11r) |
Yes |
| Layer 2 roaming |
Yes |
| Layer 3 roaming |
Yes |
| AI roaming |
Yes |
| PSK authentication |
Yes |
| Static allowlist |
Yes |
| Adjusting the transmit power for beacon and probe
frames |
Yes |
| Encryption mode (WPA-PSK, WPA2-PSK, WPA/WPA2-PSK) |
Yes |
| OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE |
Yes |
| Number of blocklists and allowlists based on MAC addresses
(single SSID) |
256 |
| Number of global blocklists/allowlists |
256 |
| Mesh management |
Yes |
| AP Mesh |
Yes |
| AP portal authentication |
Yes |
| Maximum number of devices that can be managed |
300 |
| One-Click Network Optimization |
Yes |
| Static blocklist |
Yes |
| IP Service |
|
| ARP binding |
Yes |
| IPv4 ping |
Yes |
| IPv6 ping |
Yes |
| Traceroute |
Yes |
| Static/Dynamic NAT |
Yes |
| DHCP server |
Yes |
| IPv6 |
Yes |
| Authentication |
|
| 802.1X authentication |
Yes |
| Network Management and
Monitoring |
|
| Wireless repeater mode |
Yes |
| Web login information |
Single-device login address: 10.44.77.254 Network-wide login address: 10.44.77.253 Default password: admin |
| Network-wide configuration and management |
Yes |
| Ruijie Reyee App management |
Yes |
| eWeb management |
Yes |
| Ruijie Cloud management |
Yes |
| SNMP |
Yes |
| Configuration synchronization among the app, eWeb, and Ruijie
Cloud |
Yes |
| Displaying device information on Ruijie Cloud |
Yes |
| Package Contents |
|
| Package Contents |
1 x AP 1 x Mounting bracket 4 x Cross pan head screws (M4 x 25 mm) 1 x User Manual 1 x Warranty Card 1 x Key to security lock |
| Power adapter |
No |
| Videos |
|---|
Reyee Mesh Solution Video
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RAP72-Wall BE3600 Datasheet |
| Ruijie RAP72-Wall BE3600 Installation Guide |
| Ruijie RAP72-Wall BE3600 User Manual |
