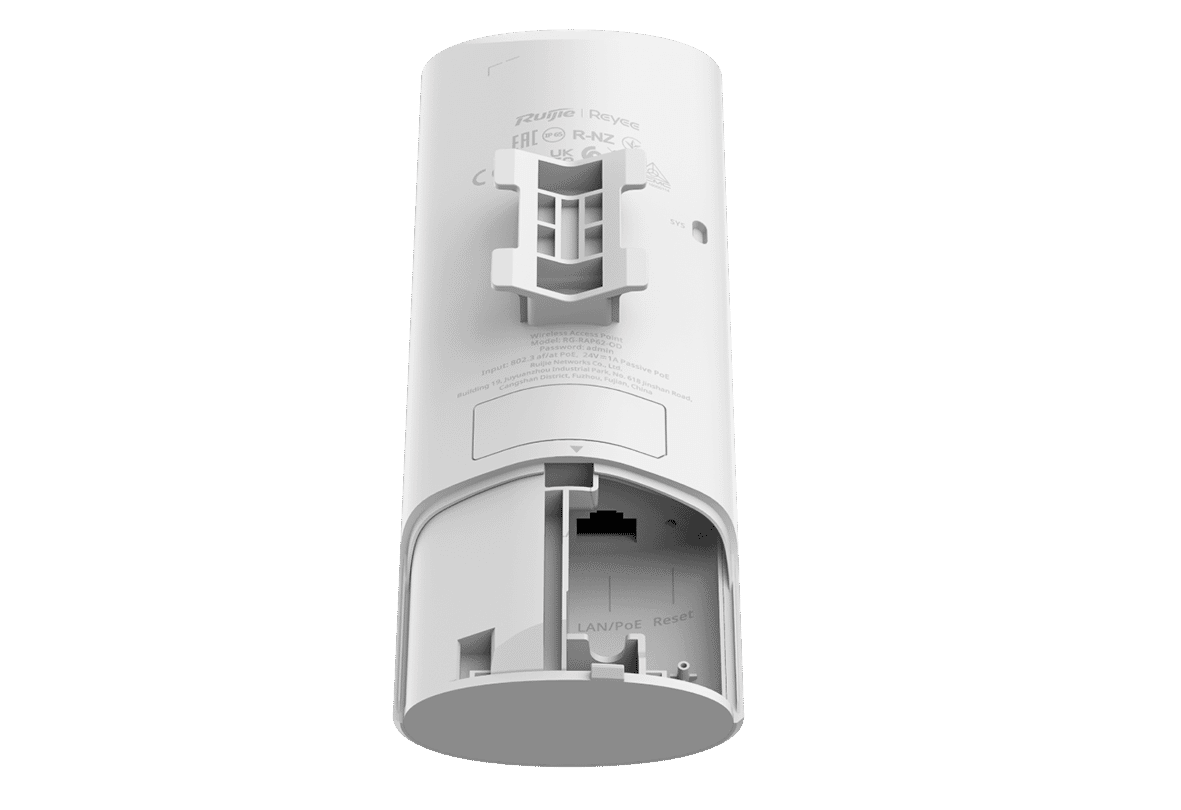

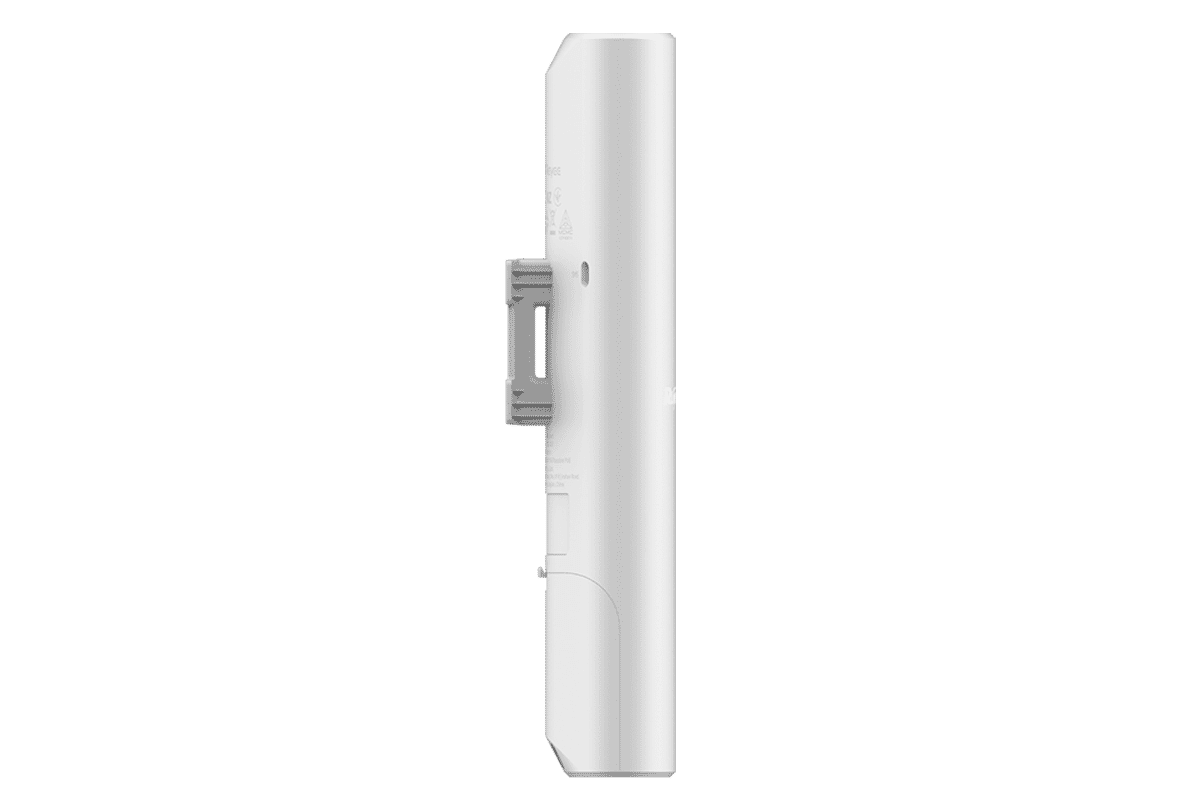

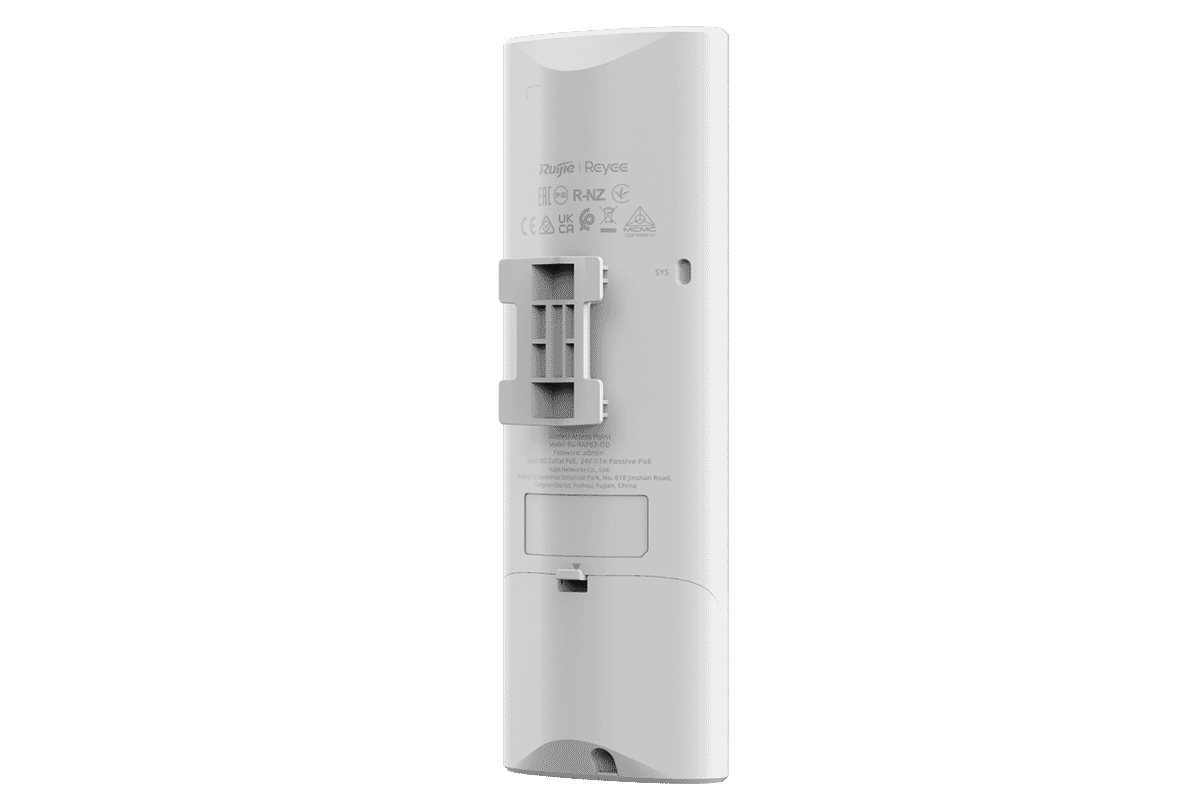

Ruijie RG-RAP62-OD AX3000 Dual-Band Gigabit Wireless Access Point IP65
Ruijie
- Dual-band Wi-Fi 6
- Can be Meshed
- 3 year guarantee
The Ruijie RG-RAP62-OD is a high-performance outdoor Wi-Fi 6 access point designed for fast, reliable wireless coverage in demanding environments. (Read more)
PRODUCT DETAILS
The Ruijie RG-RAP62-OD is a high-performance outdoor WiFi 6 access point designed for fast, reliable wireless coverage in demanding environments. Built for commercial, hospitality, retail, and campus deployments, it delivers strong dual-band performance, long-range coverage, and seamless cloud management through the Ruijie Cloud and Reyee mobile app.

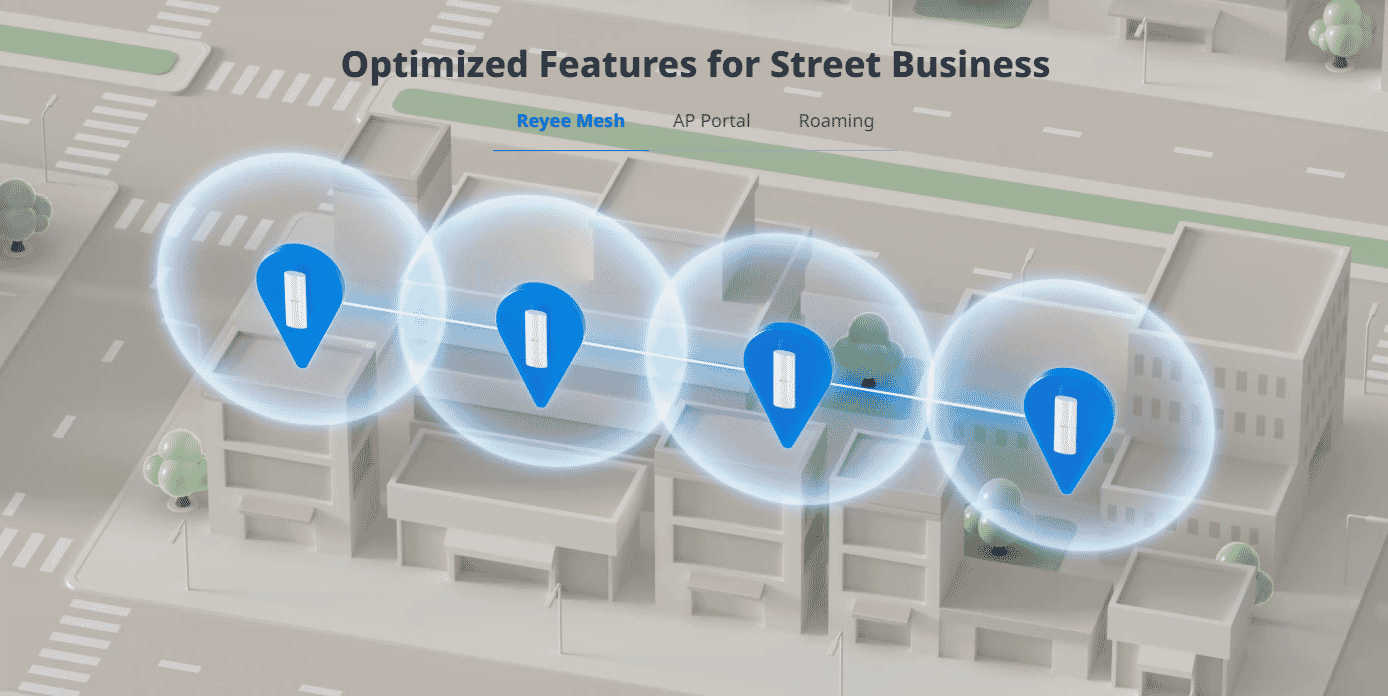

The Ruijie RG-RAP62-OD can be deployed either as a standalone outdoor access point or as part of a wider Reyee mesh Wi-Fi network, giving installers complete flexibility depending on site size and requirements. Used on its own, it provides strong, high-performance Wi-Fi 6 coverage for outdoor areas such as courtyards, car parks, or garden seating spaces. When multiple RAP62-OD units are installed together, they automatically self-organise into a mesh network, extending coverage without complex configuration. This mesh system enables seamless roaming, allowing users to move across the site while maintaining a continuous connection, making it ideal for large outdoor venues, campuses, hospitality environments, and multi-building installations where uninterrupted connectivity is essential.
With its rugged IP68-rated enclosure, the RAP62-OD withstands harsh weather, dust, and moisture, making it ideal for external installations such as shop fronts, car parks, courtyards, warehouse yards, and outdoor seating areas. WiFi 6 technology ensures higher capacity, improved efficiency, and stronger performance in high-density client environments.
Features:
- Dual-band Wi-Fi 6 (802.11ax) for high throughput and stable outdoor connectivity
- IP68-rated weatherproof housing – fully sealed against dust and water ingress

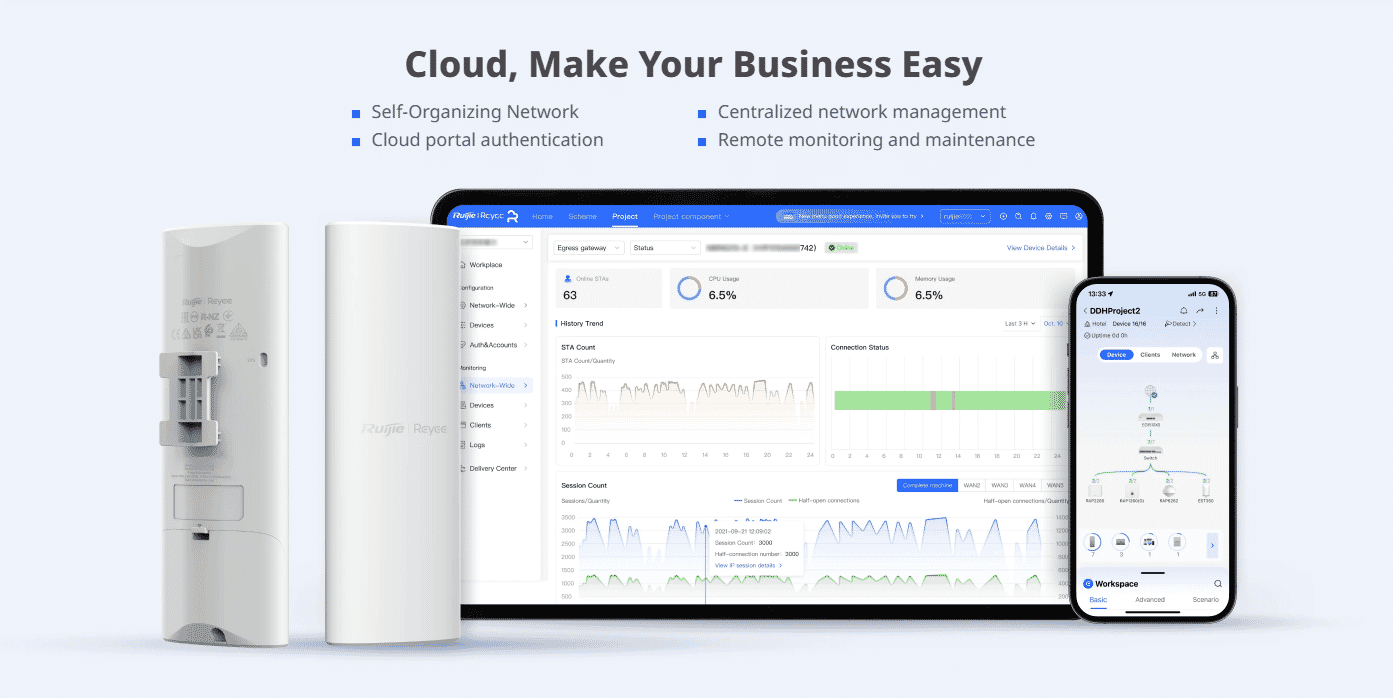

- Supports Ruijie Cloud management for remote monitoring, configuration, and deployment
- High-gain integrated antennas for extended outdoor coverage
- Omni-directional design – ideal for broadcast coverage around open areas
- Supports PoE (Power over Ethernet) for easy installation with a single cable
- Automatic network optimisation for roaming, channel selection, and band steering
- Ideal for high-density client environments, outdoor public spaces, and point-to-point/point-to-multipoint setups
| Wi-Fi Radio |
|
| 6 GHz Wi-Fi |
No |
| 5 GHz Wi-Fi |
Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax) |
| 2.4 GHz Wi-Fi |
Wi-Fi 4 (IEEE 802.11b/g/n) Wi-Fi 6 (IEEE 802.11ax) |
| Operating band |
IEEE 802.11b/g/n/ax, 2.400 GHz to
2.4835 GHz IEEE 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Available bands vary with countries and regions. To use the preceding frequency bands, ensure that your country or region supports these frequency bands. |
| Radio design |
Dual-radio 4 spatial streams ● 2.4 GHz: 2 x 2, MU-MIMO ● 5 GHz: 2 x 2, MU-MIMO |
| FEM |
2.4 GHz: 2 x eFEM 5 GHz: 3 x eFEM |
| 6 GHz channel width |
No |
| 5 GHz channel width |
Auto/20/40/80/160 MHz |
| 2.4 GHz channel width |
Auto/20/40 MHz |
| Maximum wireless data rate |
2974 Mbps |
| 6 GHz wireless data rate |
No |
| 5 GHz wireless data rate |
2401 Mbps |
| 2.4 GHz wireless data rate |
573 Mbps |
| Maximum transmit power |
Frequency bands and maximum Effective
Isotropic Radiated Power (EIRP): Note: Country specific restrictions apply. European Union & United Kingdom: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5470–5725 MHz, EIRP ≤ 30 dBm United States: 2400–2483.5 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm 5150–5250 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm 5250–5350 MHz, max output power < 24 dBm & EIRP ≤ 30 dBm 5470–5725 MHz, max output power < 24 dBm & EIRP ≤ 30 dBm 5725–5850 MHz, max output power ≤ 30 dBm & EIRP ≤ 36 dBm Myanmar: 2400–2483.5 MHz, EIRP ≤ 23 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Thailand: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5470–5725 MHz, EIRP ≤ 30 dBm 5725–5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400–2483.5 MHz, EIRP ≤ 36 dBm 5725–5825 MHz, EIRP ≤ 36 dBm Egypt: 2400–2483.5 MHz, EIRP ≤ 20 dBm 5150–5350 MHz, EIRP ≤ 23 dBm Vietnam: 2400–2483.5 MHz, EIRP ≤ 23 dBm 5150–5350 MHZ, EIRP ≤ 23 dBm 5470–5725 MHz, EIRP ≤ 30 dBm 5725–5850 MHz, EIRP ≤ 30 dBm |
| Maximum transmit power (6
GHz) |
No |
| Maximum transmit power (5
GHz) |
Combined power: 27.7 dBm (single-stream
power: 23 dBm) Note: The transmit power varies according to regulations in different countries and regions. |
| Maximum transmit power (2.4
GHz) |
Combined power: 26 dBm (single-stream
power: 23 dBm) Note: The transmit power varies according to regulations in different countries and regions. |
| Coverage range |
5 GHz max: 300 m (984.25 ft.) 2.4 GHz max: 100 m (328.08 ft.) 5 GHz recommended: 200 m (656.17 ft.) 2.4 GHz recommended: 50 m (164.04 ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference. |
| Modulation |
OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18
Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM OFDMA |
| Receive sensitivity |
11b: –91 dBm (1 Mbps), –88 dBm (5.5
Mbps), –85 dBm (11 Mbps) 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9) 11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9) 11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11) 11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11) 11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11) |
| Antenna |
|
| Antenna |
5 GHz: 1 built-in omnidirectional
antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas |
| Antenna horizontal
orientation |
No |
| Antenna vertical orientation |
No |
| Antenna gain (6 GHz) |
No |
| Antenna gain (5 GHz) |
6.50 dBi |
| Antenna gain (2.4 GHz) |
4.00 dBi |
| Dimensions and
Weight |
|
| Product dimensions (W x D x
H) |
70 mm x 35 mm x 200 mm (2.76 in. x 1.38
in. x 7.87 in.) (excluding the mounting bracket) |
| Colour |
White |
| Weight |
≤ 0.4 kg (0.88 lbs.) (without packaging
materials) |
| Shipping weight |
≤ 0.57 kg (1.26 lbs.) |
| Port
Specifications |
|
| Number of 10/100/1000BASE-T
ports |
1 |
| Reset button |
1 |
| LEDs |
1 x system status LED |
| Power Supply and
Consumption |
|
| Power supply |
PoE/PoE+ |
| Local power supply |
No |
| Dimensions of the DC
connector |
No |
| PoE In standard |
● IEEE 802.3af (PoE) Note: Radio transmission and reception is limited to 2T2R at 2.4 GHz and 2T3R at 5 GHz, and the wireless rate at 5 GHz is 60% of the original rate. ● IEEE 802.3at (PoE+) |
| Passive PoE power supply |
Yes, 24 V passive PoE
injector |
| PoE budget |
No |
| Maximum power consumption |
16 W |
| Environment and
Reliability |
|
| Operating temperature |
–30°C to +65°C (–22°F to
+149°F) |
| Storage temperature |
–40°C to +85°C (–40°F to
+185°F) |
| Operating humidity |
0% RH to 100% RH (non-condensing) |
| Storage humidity |
0% RH to 100% RH (non-condensing) |
| IP rating |
IP65 |
| Surge protection |
Ethernet port: ±4 kV for common mode |
| MTBF |
400,000 hours |
| Certification and
Regulatory Compliance |
|
| RoHS |
Yes |
| Safety compliance |
EN 62368-1 |
| EMC |
EN 55032 EN 55035 EN 61000-3-3 EN 61000-3-2 EN 301489-1 EN 301489-3 EN 301489-17 |
| RF |
EN 300 328 EN 301 893 EN 300 440 |
| Certification |
CE, FCC, CB, ISED, cTUVus |
| System
Specifications |
|
| Flash memory |
128 MB |
| RAM |
512 MB DDR3 |
| Basic
Configurations |
|
| AP mode |
Yes |
| Routing mode |
Yes |
| Internet access mode |
Static IP address Static IPv6 address Dynamic IP address Dynamic IPv6 address PPPoE |
| Interface |
|
| IPTV transparent transmission |
No |
| Ethernet
Interface |
|
| PPPoE clients |
Yes |
| Ethernet
Switching |
|
| IEEE 802.1Q VLAN |
Yes |
| WLAN |
|
| Maximum number of associated wireless clients |
64 (2.4 GHz) 512 (5 GHz) 512 (2.4 GHz and 5 GHz enabled) |
| Recommended number of associated wireless clients |
● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled) |
| Maximum number of SSIDs |
8 |
| Radio-based client limiting |
Yes |
| Layer 2 isolation |
Yes |
| OFDMA |
Yes |
| WMM |
Yes |
| DFS |
Yes |
| MLO |
No |
| 4K-QAM |
No |
| Different SSIDs for the same VLAN |
Yes |
| Enabling/Disabling MLO |
No |
| AP load balancing |
Yes |
| Beamforming |
Yes |
| 802.11k/v roaming |
Yes |
| Fast transition (802.11r) |
Yes |
| Layer 2 roaming |
Yes |
| Layer 3 roaming |
Yes |
| AI roaming |
Yes |
| PSK authentication |
Yes |
| Static allowlist |
|
| Adjusting the transmit power for beacon and probe
frames |
Yes |
| Encryption mode (WPA-PSK, WPA2- PSK, WPA/WPA2-PSK) |
Yes |
| OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE |
Yes |
| Number of blocklists and allowlists based on MAC addresses
(single SSID) |
256 |
| Number of global blocklists/allowlists |
256 |
| Mesh management |
Yes |
| AP Mesh |
Yes |
| AP portal authentication |
Yes |
| Maximum number of devices that can be managed |
300 |
| One-Click Network Optimization |
Yes |
| Static blocklist |
Yes |
| IP Service |
|
| ARP binding |
Yes |
| IPv4 ping |
Yes |
| IPv6 ping |
Yes |
| Traceroute |
Yes |
| Static/Dynamic NAT |
Yes |
| DHCP server |
Yes |
| Authentication |
|
| 802.1X authentication |
Yes |
| Network Management and
Monitoring |
|
| Wireless repeater mode |
Yes |
| Web login information |
Single-device login address: 10.44.77.254 Network-wide login address: 10.44.77.253 Default password: admin |
| Network-wide configuration and management |
Yes |
| Ruijie Reyee App management |
Yes |
| eWeb management |
Yes |
| Ruijie Cloud management |
Yes |
| SNMP |
Yes |
| Configuration synchronization among the app, eWeb, and Ruijie
Cloud |
Yes |
| Displaying device information on Ruijie Cloud |
Yes |
| Package Contents |
|
| Package Contents |
1 x AP 1 x Mounting bracket 1 x Cable tie 2 x Cross pan head screws (ST2.9 x 20 mm) 2 x Plastic expansion anchors (φ5 x 24 mm) 1 x User Manual 1 x Warranty Card |
| Accessories |
|
| Power adapter |
No |
| Videos |
|---|
Ruijie RG-RAP62-OD AX3000 Dual-Band Gigabit Wireless Access Point IP65
Reyee Mesh Solution Video
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-RAP62-OD Datasheet |
| Ruijie RG-RAP62-OD User Manual |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
