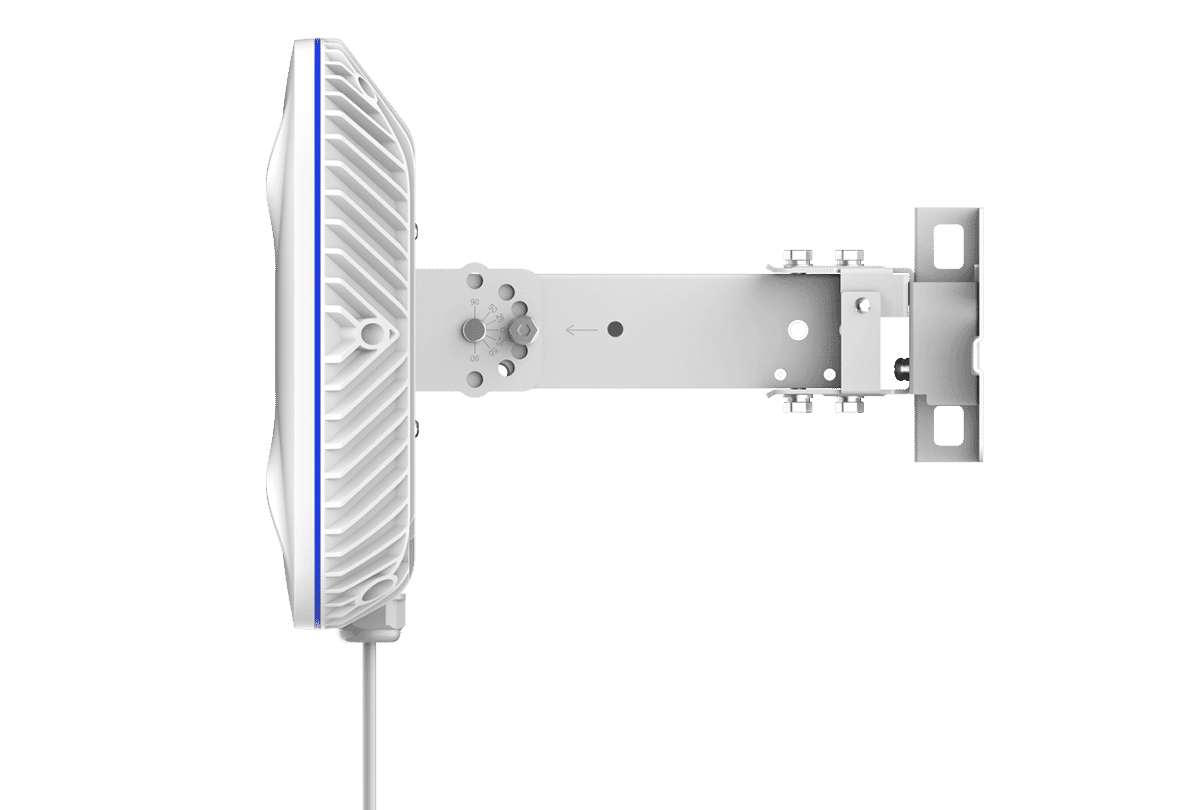

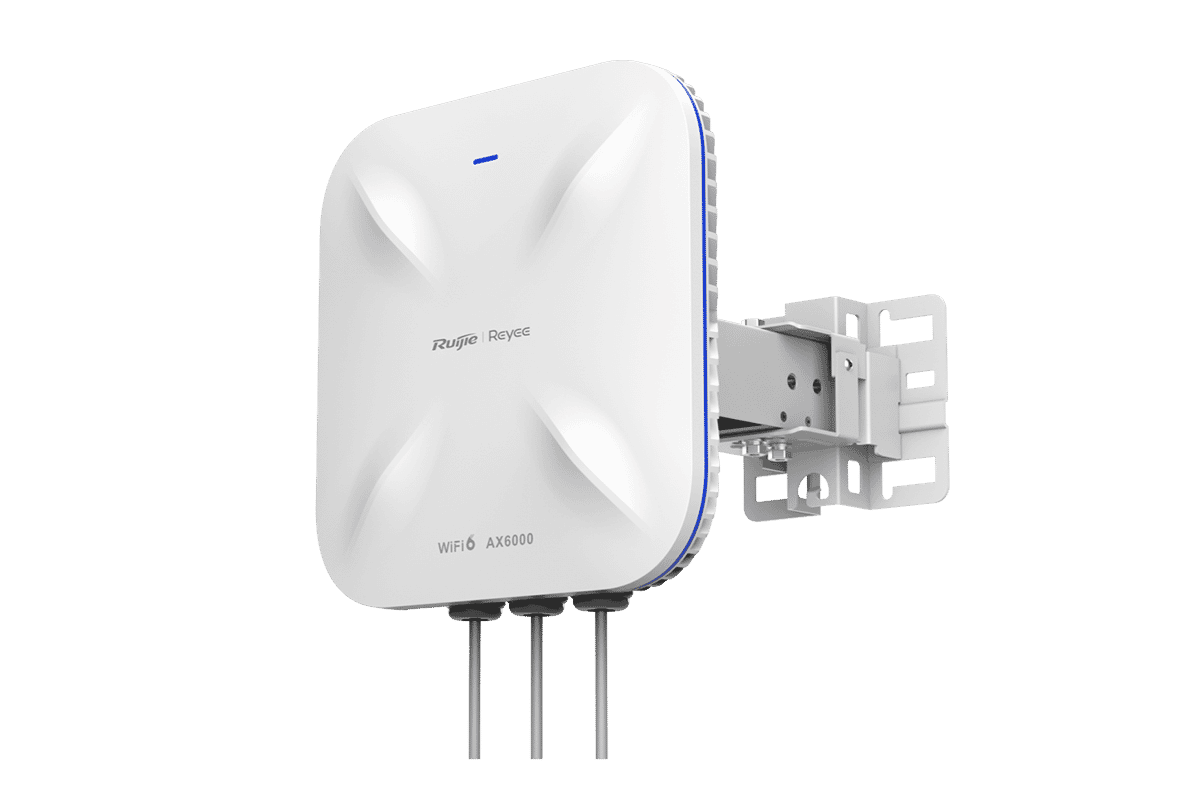

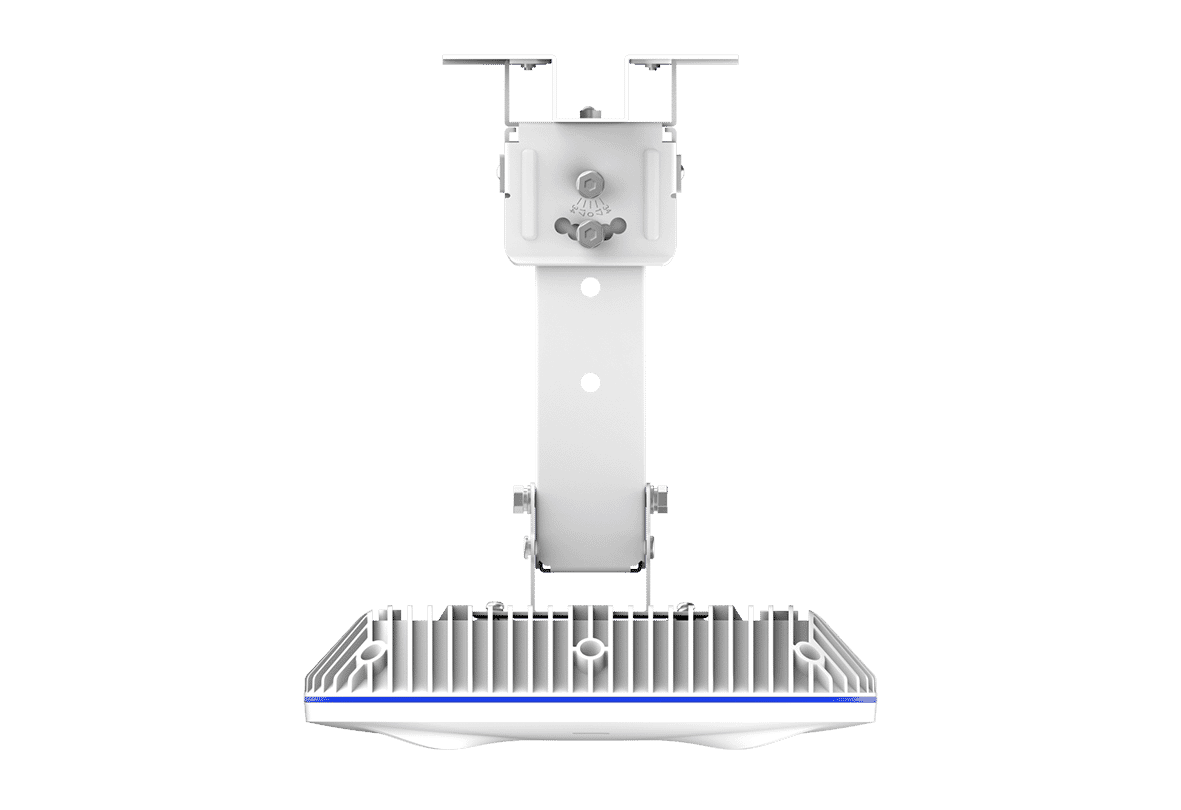

Ruijie RG-RAP6260(H)-D Reyee 802.11ax Wi-Fi 6 AX6000 Outdoor Access Point
Ruijie
- Ultra-fast 5.95Gbps
- Wi-Fi 6 AX6000
- 3 year guarantee
The Ruijie RG-RAP6260(H)-D is a high-performance, dual-band indoor Wi-Fi 6 access point designed to deliver fast, reliable, & seamless wireless signal (Read more)
PRODUCT DETAILS
The Ruijie RG-RAP6260(H)-D is a high-performance, dual-band indoor Wi-Fi 6 (802.11ax) access point, designed to deliver fast, reliable, and seamless wireless connectivity for high-density environments. With cutting-edge Wi-Fi 6 technology, this access point provides improved network efficiency, higher throughput, and enhanced coverage, making it ideal for businesses, campuses, and large office spaces.
Wi-Fi 6 (802.11ax) Technology: The RG-RAP6260(H)-D supports the latest Wi-Fi 6 standard, providing faster speeds, increased capacity, and improved efficiency compared to previous Wi-Fi generations. This ensures a stable and responsive connection even in high-traffic areas.
Operating simultaneously on both 2.4GHz and 5GHz bands, it supports a combined throughput of up to 3,000 Mbps, ensuring optimal performance for a wide range of applications such as video streaming, VoIP, and online conferencing.
With Multi-User MIMO (MU-MIMO) and Orthogonal Frequency Division Multiple Access (OFDMA), the RG-RAP6260(H)-D can handle multiple devices at once, reducing congestion and improving efficiency in high-density environments.
With advanced roaming capabilities, the RG-RAP6260(H)-D ensures a seamless transition between access points, providing uninterrupted connectivity as users move throughout large areas. Equipped with high-gain antennas, the access point provides strong, stable signals with extended coverage, reducing dead zones and ensuring consistent connectivity across the entire area.
Whether you’re setting up a network in a busy office, a university campus, or a public space, the Ruijie RG-RAP6260(H)-D delivers the speed, reliability, and scalability you need to support a growing number of connected devices and demanding applications. With Wi-Fi 6 technology, advanced security features, and easy management, it’s an ideal solution for modern businesses looking to future-proof their wireless network.
Features:
- Ultra-fast 5.95 Gbit/s outdoor Wi-Fi 6, best-in-class Wi-Fi performance
- Easily adding extra outdoor Wi-Fi with Reyee mesh
- Long-distance deployment with optical ports
- IP68 rating, adapting to harsh environments
- Internet access with 2.5 Gbit/s uplink
| Wi-Fi Protocols |
|
| 5 GHz |
Wi-Fi 4: IEEE 802.11a/n Wi-Fi 5: IEEE 802.11ac Wave2 Wi-Fi 6: IEEE 802.11ax |
| 2.4 GHz |
Wi-Fi 4:IEEE 802.11b/g/n Wi-Fi 6:IEEE 802.11ax |
| Operating Frequency
Bands |
|
| 5 GHz |
5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz |
| 2.4 GHz |
2.400 GHz to 2.4835 GHz |
| Spatial Streams |
|
| 5 GHz |
4 spatial streams, 4x4 MIMO |
| 2.4 GHz |
4 spatial streams, 4x4 MIMO |
| Antenna |
|
| Omni-directional |
No (Directional) |
| 5 GHz Antenna Gain |
9.0dBi |
| 2.4 GHz Antenna Gain |
10.0dBi |
| Channel Width |
|
| 5 GHz |
Auto/20/40/80/160 MHz |
| 2.4 GHz |
Auto/20/40 MHz |
| Data Rate |
|
| Max Throughput |
5950Mbps |
| 5 GHz |
4803Mbps |
| 2.4 GHz |
1147Mbps |
| Max. Transmit
Power |
|
| 5 GHz |
≤400mW(26dBm) |
| 2.4 GHz |
≤400mW(26dBm) |
| Wi-Fi Coverage |
|
| Optimal Coverage |
N/A |
| Max. Wi-Fi Coverage Range (6 GHz) |
N/A |
| Max. Wi-Fi Coverage Range (5 GHz) |
1000m |
| Max. Wi-Fi Coverage Range (2.4 GHz) |
0 |
| Modulation |
|
| Modulation |
OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps,
64QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM, 256QAM and1024QAM OFDMA |
| Receiver
Sensitivity |
|
| Receiver Sensitivity |
11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，-85dBm(11Mbps) 11a/g:
-89dBm(6Mbps)，-80dBm(24Mbps)，-76dBm(36Mbps)，-71dBm(54Mbps) 11n: -83dBm(MCS0)，-65dBm(MCS7)，-83dBm(MCS8)，-65dBm(MCS15) 11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9) 11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9) 11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9) 11ac: 160MHz: -76dBm(MCS0), -50dBm(MCS9) 11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11) 11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11) 11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11) 11ax: 160MHz: -76dBm(MCS0), -49dBm(MCS11) |
| Dimensions |
|
| Dimensions (excluding mounting kits) |
298 mm x 298 mm x 65 mm (11.73 in. x 11.73 in. x 2.56 in.) |
| Weight |
≤ 3.5 kg (7.72 lbs.) |
| Service Ports |
|
| Number of 10/100/1000BASE-T Ports |
0 |
| Number of 10/100/1000/2500BASE-T Ports |
1 (supports 802.3bt PoE) |
| Number of 1 Gbps Optical Ports (SFP) |
1 |
| Number of 10 Gbps Optical Ports (SFP+) |
0 |
| Power Supply |
|
| DC (Local Power) |
Yes (48V/1A) |
| DC Port Dimensions |
Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| 802.3af |
No |
| 802.3at |
Yes(The rate will decrease. The maximum rate is 573 Mbps at 2.4
GHz and 2401 Mbps at 5 GHz) |
| 802.3bt |
Yes |
| 48 V passive PoE |
Yes (60W) |
| PoE Out |
No |
| Power Consumption |
< 40W |
| Power Adapter |
No |
| Buttons |
1 × Factory reset |
| LEDs |
1 × System LED indicator(blue) |
| Environment |
|
| Operating Temperature |
–30°C to +65°C (–22°F to +149°F) |
| Storage Temperature |
–40°C to +85°C (–40°F to +185°F) |
| Operating Humidity |
0% to 100% (non-condensing) |
| Storage Humidity |
0% to 100% (non-condensing) |
| Mounting |
|
| Ceiling-mount |
No |
| Wall-mount |
Yes |
| Pole-mount |
Yes |
| Compliance
Standards |
|
| Health |
EN IEC 62311:2020 |
| Spectrum |
EN 300 328 V2.2.2 EN 301 893 V2.1.1 EN 300 440 V2.2.1 |
| Weatherproof |
|
| IP Rating |
IP68 |
| Lightning Protection/Surge |
±4 kV |
| Software |
|
| Operating Mode |
Router Mode AP Mode |
| WLAN |
|
| Recommended Number of Clients |
BW160 11AX：16(2.4G)+114(5G)=130 BW80 11AX：16(2.4G)+84(5G)=100 11AC：16(2.4G)+64(5G)=80 |
| Max. Number of SSIDs |
8 |
| Radio-based STA Limit |
Yes |
| Layer 2 Client Isolation |
Yes |
| OFDMA Subcarrier |
Yes |
| OFDMA |
Yes |
| Target Wake Time (TWT) |
No |
| Wi-Fi Multimedia (WMM) |
Yes |
| 802.1Q VLAN |
Yes |
| Multi-Link Operation (MLO) |
No |
| 4K-QAM |
No |
| Same SSID for Different VLANs |
Yes |
| Roaming |
|
| 802.11k/v |
Yes |
| 802.11r |
Yes |
| Layer 2 Roaming |
Yes |
| Layer 3 Roaming |
Yes |
| AI Roaming |
Yes |
| Security |
|
| PSK Authentication |
Yes |
| Static Blocklist and Allowlist |
Yes |
| WPA (TKIP), WPA2 (AES), and WPA-PSK |
Yes |
| OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE |
Yes |
| DHCP Snooping |
Yes |
| 802.1X |
Yes |
| ARP Check |
No |
| IP Source Guard |
No |
| LLDP |
No |
| Static ARP Binding |
Yes |
| Proxy ARP |
No |
| Ping |
Yes |
| Traceroute |
Yes |
| NAT |
|
| NAT |
Yes |
| Static IP Address |
Yes |
| DHCP Server |
Yes |
| PPPoE Client PPPoE Dial-up |
Yes |
| AP Mesh |
|
| Mesh Management |
Yes |
| Reyee Mesh |
Yes |
| Standalone
Portal |
|
| Captive Portal |
Yes |
| Bandwidth Limit |
Yes |
| Data Quota |
No |
| Management and
Maintenance |
|
| Default Access/Password |
Yes |
| No. of APs on a Self-Organizing Network |
300 |
| Unified Networking for All Network Equipment |
Yes |
| Local or Remote Management via Ruijie Reyee App |
Yes |
| Local Management via the Web Interface |
Yes |
| Remote Management via Ruijie Cloud |
Yes |
| SNMP |
Yes |
| Platform Management
Features |
|
| Optimization of Channel, Transmit Power, and Management Frame
Power Settings. Both Pre- and Pro- Optimization Settings are Displayed. |
Yes |
| Unified Configuration |
Yes |
| Unified Monitoring via Ruijie Cloud |
Yes |
| Others |
|
| Flash |
256MB |
| Memory |
512MB |
| Colour of AP Enclosure |
Warm White |
| Videos |
|---|
Ruijie RG-RAP6260(H)-D Reyee 802.11ax Wi-Fi 6 AX6000 Outdoor Access Point
Reyee Mesh Solution Video
Ruijie Easy Network Solution| Files |
|---|
| Ruijie RG-RAP6260(H)-D Datasheet |
| Ruijie RG-RAP6260(H)-D Installation Manual |
| Links* |
|---|
| Ruijie website |
| Ruijie support site |
