Ruijie RG-RAP72Pro Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point
Ruijie
- Ultra-fast 5040 Mbps
- Next Generation Wi-Fi 7
- 3 year guarantee
The RG-RAP72Pro is a Wi-Fi 7 5040 Mbps dual-band ceiling access point which delivers data rates of 688 Mbps in the 2.4 GHz band & 4,323 Mbps in 5GHz (Read more)
PRODUCT DETAILS
The RG-RAP72Pro is a powerful Wi-Fi 7 5040 Mbps dual-band ceiling access point designed for indoor scenarios such as offices, hotels, and schools. Featuring multiple advanced technologies, this AP can deliver high-speed, stable, and secure Wi-Fi connectivity to meet the diverse needs of users.
The RG-RAP72Pro supports the IEEE 802.3at standard PoE and 12 V
DC power supply, offering flexibility to choose the most suitable
power supply mode based on specific conditions. It is compatible
with the IEEE
802.11a/b/g/n/ac/ax/be standards, and operates in the 2.4 GHz and 5
GHz frequency bands. The RG-RAP72Pro delivers data rates of 688
Mbps in the 2.4 GHz band and 4,323 Mbps in the 5 GHz band, with a
maximum data rate of 5.011 Gbps, meeting the requirements for
high-speed wireless connectivity.

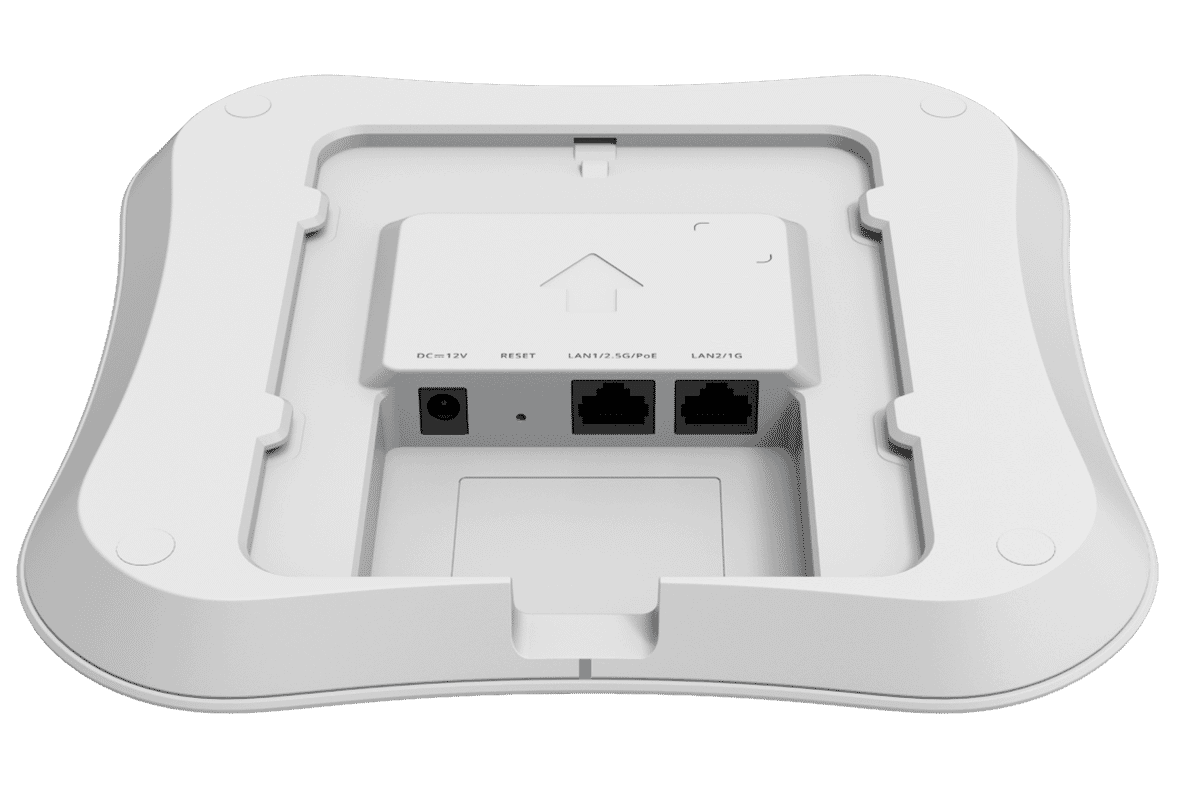

Moreover, the RG-RAP72Pro provides one 2.5G Ethernet port and one 1000 Mbps Ethernet port, bringing the high-speed wireless performance into full play. Leveraging Reyee Self-Organizing Network technology, it can cater to diverse networking needs while ensuring complete indoor Wi-Fi coverage.
Features:
- Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
- Superior streaming with Wi-Fi 7's exclusive MLO feature
- Compact design and easy installation
- Enhanced data transmission with 4K-QAM for faster speeds
- Ideal for integrating with enterprise switches to create a robust office network
| Hardware | |
| Wi-Fi Protocols |
5 GHz Wi-Fi4: IEEE 802.11a/n Wi-Fi5: IEEE 802.11ac Wave2 Wi-Fi6: IEEE 802.11ax Wi-Fi7: IEEE 802.11be |
| 2.4 GHz Wi-Fi4: IEEE 802.11b/g/n Wi-Fi6: IEEE 802.11ax Wi-Fi7: IEEE 802.11be |
|
| Operating Frequency
Bands (country-specific restrictions apply) |
5 GHz 5.150 GHz to 5.350 GHz 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz |
| 2.4 GHz 2.400 GHz to 2.4835 GHz |
|
| Spatial Streams |
5 GHz 3 spatial streams, 3x3 MIMO |
| 2.4 GHz 2 spatial streams, 2x2 MIMO |
|
| Antenna |
Omni-directional |
| 5 GHz Antenna Gain 2.0dBi |
|
| 2.4 GHz Antenna Gain 3.0dBi |
|
| Channel Width |
5 GHz Auto/20/40/80/160 MHz |
| 2.4 GHz Auto/20/40 MHz |
|
| Data Rate |
Max Throughput 5011Mbps |
| 5 GHz 4323Mbps |
|
| 2.4 GHz 688Mbps |
|
| Max. Transmit
Power |
5 GHz 25dBm |
| 2.4 GHz 24dBm |
|
| Modulation |
OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18
Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1
Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA |
| Receiver Sensitivity |
11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，-
85dBm(11Mbps) 11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，- 76dBm(36Mbps)，-71dBm(54Mbps) 11n: -83dBm(MCS0)，-65dBm(MCS7)，- 83dBm(MCS8)，-65dBm(MCS15) 11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9) 11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9) 11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9) 11ac: 160MHz: -76dBm(MCS0), -50dBm(MCS9) 11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11) 11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11) 11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11) 11ax: 160MHz: -76dBm(MCS0), -49dBm(MCS11) 11be: 20MHz: –85dBm(MCS0), –52dBm(MCS13) 11be: 40MHz: –82dBm(MCS0), –49dBm(MCS13) 11be: 80MHz: –82dBm(MCS0), –46dBm(MCS13) 11be: 160MHz: –79dBm(MCS0), –44dBm(MCS13) |
| Dimensions (W x D x H) |
208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.) |
| Weight |
≤ 0.65 kg (1.43 lbs.) |
| Number of 10/100/1000 BASE-T
Ports |
1 |
| Number of 10/100/1000/2500 BASE-T
Ports |
1 |
| Number of 100/1000/2.5G/5G/10G BASE-T
Ethernet Ports |
0 |
| DC (Local Power) |
Yes (12V/2.5A) |
| DC Port Dimensions |
Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| 802.3af |
Yes (1T1R) |
| 802.3at |
Yes |
| Max. PoE Wattage by PSE |
No |
| Power Consumption |
< 30W |
| Power Adapter |
No |
| Buttons |
1 × Factory reset |
| LEDs |
1 × System LED
indicator(blue) |
| Operating Temperature |
0°C to +40°C (32°F to
+104°F) |
| Storage Temperature |
–40°C to +70°C (–40°F to
+158°F) |
| Operating Humidity |
5% to 95% (non-condensing) |
| Storage Humidity |
5% to 95% (non-condensing) |
| Ceiling-mount |
Yes |
| Wall-mount |
Yes |
| Pole-mount |
No |
| Health |
EN IEC 62311:2020 |
| Spectrum |
EN 300 328 V2.2.2.2.2 EN 301 893 V2.1.1 EN 300 440 V2.2.1 Draft EN 303 687 V1.0.0 |
| IP Rating |
IP41 |
| Lightning Protection/Surge |
±2 KV |
| Software
Specifications |
|
| Operating Mode (AP Mode and Router
Mode) |
Router Mode AP Mode |
| WLAN |
|
| Recommended Number of
Clients |
BW160 11BE/AX:16(2.4G)+94(5G)=110 BW80 11AX：16(2.4G)+84(5G)=100 11AC：16(2.4G)+64(5G)=80 |
| Max. Number of SSIDs |
8 |
| Radio-based STA Limit |
Yes |
| Layer 2 Client Isolation |
Yes |
| OFDMA Subcarrier |
Yes |
| OFDMA |
Yes |
| Target Wake Time (TWT) |
No |
| Wi-Fi Multimedia (WMM) |
Yes |
| 802.1Q VLAN |
Yes |
| Multi-Link Operation (MLO) |
Yes |
| 4K-QAM |
Yes |
| Same SSID for Different
VLANs |
Yes |
| Roaming |
|
| 802.11k/v |
Yes |
| 802.11r |
Yes |
| Layer 2 Roaming |
Yes |
| Layer 3 Roaming |
Yes |
| AI Roaming |
Yes |
| Security |
|
| PSK Authentication |
Yes |
| Static Blocklist and
Allowlist |
Yes |
| WPA (TKIP), WPA2 (AES), and
WPA-PSK |
Yes |
| Security |
|
| OWE (Enhanced Open) WPA3-SAE
WPA2-PSK/WPA3-SAE |
Yes |
| 802.1X |
Yes |
| ARP Check |
No |
| IP Source Guard |
No |
| LLDP |
No |
| Static ARP Binding |
Yes |
| Proxy ARP |
No |
| Ping |
Yes |
| Traceroute |
Yes |
| Routing |
|
| NAT |
Yes |
| Static IP Address |
Yes |
| DHCP Server |
Yes |
| PPPoE Client PPPoE Dial-up |
Yes |
| AP Mesh |
|
| Mesh Management |
Yes |
| Reyee Mesh |
Yes |
| Standalone
Portal |
|
| Captive Portal |
Yes |
| Bandwidth Limit |
Yes |
| Data Quota |
Yes |
| Management and
Maintenance |
|
| Default Access/Password |
Yes |
| No. of APs on a Self-Organizing
Network |
300 |
| Unified Networking for All Network
Equipment |
Yes |
| Local or Remote Management via Ruijie
Reyee App |
Yes |
| Local Management via the Web
Interface |
Yes |
| Remote Management via Ruijie
Cloud |
Yes |
| SNMP |
Yes |
| Platform Management
Features |
|
| Optimization of Channel, Transmit
Power, and Management Frame Power Settings. Both Pre- and Pro-
Optimization Settings are Displayed. |
Yes |
| Unified Configuration via Ruijie
Cloud |
Yes |
| Unified Monitoring via Ruijie
Cloud |
Yes |
| Other |
|
| Flash |
256MB |
| Memory |
512MB |
| Colour of AP Enclosure |
Warm White |
