Ruijie RG-EST330F-P, 3 km, 13 dBi Wi-Fi 5, 867 Mbps Wireless Bridge
Ruijie
- Dual PoE Out Ports
- Up to 3Km Range
- 3 year guarantee
The Ruijie RG-EST330F-P is a point-to-point bridge that can transmit data wirelessly up to 3km and features dual PoE out ports which can power cameras (Read more)
PRODUCT DETAILS
The RG-EST330F-P is an IEEE 802.11ac-compliant wireless bridge that can transmit data wirelessly up to 3km on the 5GHz band, making it ideal for devices that are spread over a large area where cabling is not practical, such as CCTV installations. The RG-EST350 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services. The PoE out ports can be used to power PoE capable cameras, making it ideal for remote CCTV applications.

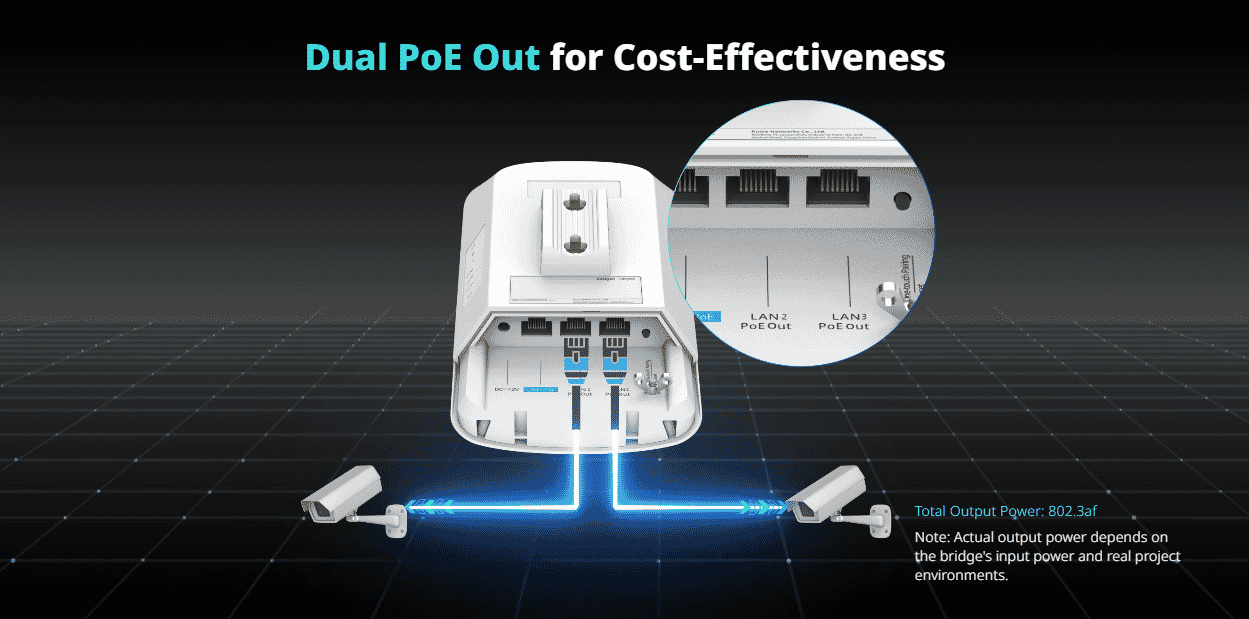

The RG-EST330F-P supports the IEEE 802.11n standard, offering a
maximum data rate of 150 Mbps on the 2.4 GHz band, which is ideal
for remote device management. The RG-EST330F-P also supports IEEE
802.3af-compliant PoE and features two PoE-out ports, with a total
output power of 15.4 W.

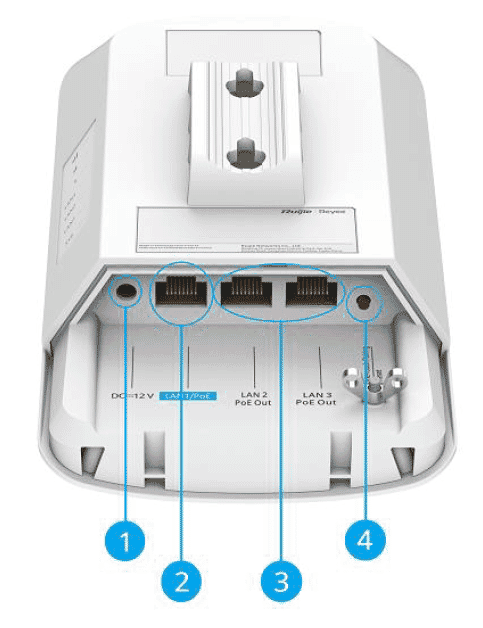

Interface
| No. |
Component |
Description |
|---|---|---|
| 1 |
DC power connector |
Connected to a 12–24 V DC power
adapter. |
| 2 |
LAN1/PoE port |
|
| 3 |
LAN2 and LAN3 PoE-out ports |
|
| 4 |
Reset/One-Touch Pairing
button |
|
Features:
- 3 x FE Ports, including 2 x PoE Out Ports

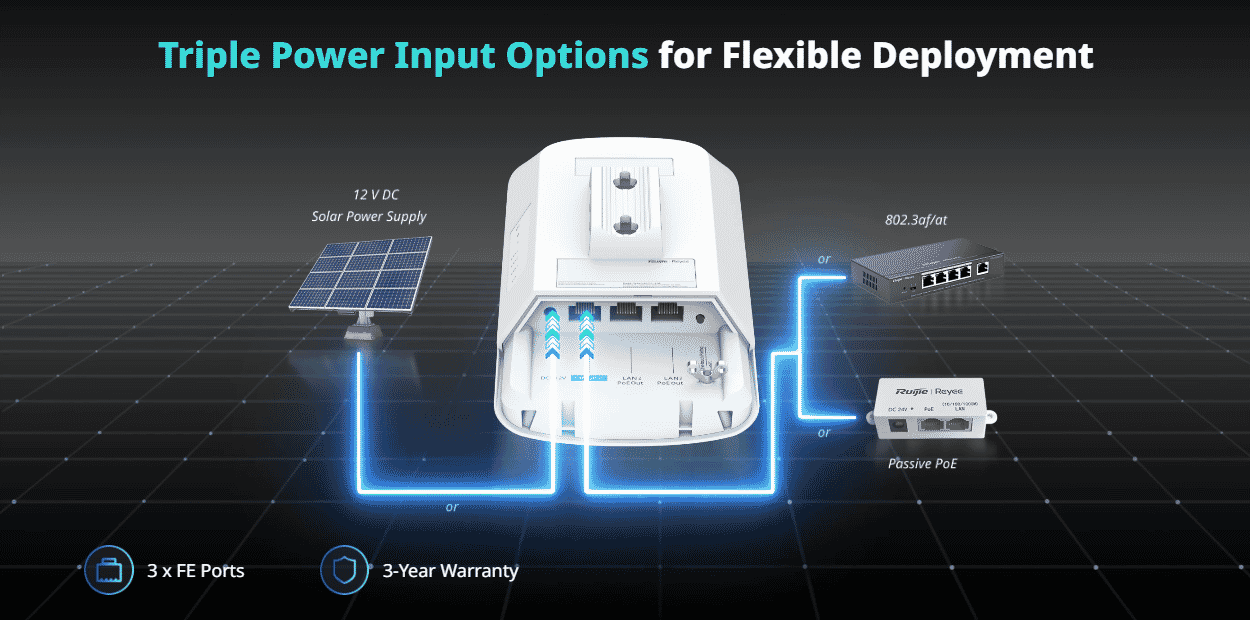

- Support 3 Power Supply Options: 12 V DC, Passive PoE, 802.3af/at
- Support TDMA
- Support SON
- Up to 3K transmission distance
- Wi-Fi 5 standard
- IP55 rated
- 3 x 10/100 Mbps Ports
- Up to 867 Mbps
| Hardware |
|
| Radio Design |
5 GHz dual-stream 2.4 GHz single-stream |
| 2.4 GHz Band |
Yes |
| 5 GHz Band |
Yes |
| Protocol and Standard |
5 GHz: 802.11ac/n/a 2.4 GHz: 802.11b/g/n |
| Wi-Fi Standard |
Wi-Fi 5 |
| Spatial Streams |
5 GHz dual-stream, 2x2 MIMO 2.4 GHz single-stream |
| 2.4 GHz Channel Width |
Auto/20/40 MHz |
| 5 GHz Channel Width |
Auto/20/40/80 MHz |
| Receiver Sensitivity |
11a: -89 dBm(6 Mbps), -80 dBm (24 Mbps), -76
dBm (36 Mbps), - 71 dBm (54 Mbps); 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65dBm@MCS15; 11ac: -86 dBm (MCS0), -63 dBm (MCS9) |
| Nominal Receive Sensitivity @20 MHz Channel |
-91 dBm (MCS0) to -57 dBm (MCS9) |
| Nominal Receive Sensitivity @40 MHz Channel |
-83 dBm (MCS0) to -57 dBm (MCS9) |
| Nominal Receive Sensitivity @80 MHz Channel |
-76 dBm (MCS0) to -51 dBm (MCS9) |
| Modulation Levels (Adaptive) |
MCSO (BPSK) to MCS9 (256QAM) |
| Wi-Fi Protocols (2.4 GH |
Wi-Fi 4 |
| Wi-Fi Protocols (5 GHz) |
Wi-Fi 5 (IEEE 802.11ac) |
| Wireless Data Rate |
1017 Mbps |
| Wireless Data Rate (2.4 GHz) |
150 Mbps |
| Wireless Data Rate (5 GHz) |
867 Mbps |
| Frequency Bands |
2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Country-specific restrictions apply. |
| 2.4 GHz Max. Transmit Power |
20 dBm |
| 5 GHz Max. Transmit Power |
26 dBm |
| Surge Protection |
Common mode: ±4 kV Differential mode: ±2 kV |
| Dimensions (W x D x H) |
198.8 mm x 102 mm x 53.4 mm (7.827 in. x 4.016 in. x 2.102
in.) (without bracket) |
| Weight |
0.37 kg (0.82 Ibs.) |
| Number of Fixed LAN Ports |
3 |
| Max. LAN Port Rate |
100 Mbps |
| Number of 10/100BASE-T Ports |
3 |
| Reset |
Yes |
| Status LED |
Yes |
| Power Supply |
12V DC or 24 V passive PoE or 802.3af/at Note: It is recommended to power the RG-EST330F-P via 24 V PoE. When the device is powered by the original DC adapter, the bridge's network features will operate properly, but its PoE Out feature will be unavailable. |
| Local Power Supply |
Yes |
| PoE Out |
Yes Note: 1. PoE Out supported, with 24 V passive PoE or 802.3at power input; 2. PoE Out not supported, with 12 V DC or 802.3af power input. |
| PoE Power Budget |
15.4 W (PoE budget for two ports) |
| Antenna Type |
Built-in antenna, horizontal 30°/vertical 30° |
| Hardware Button |
1 x reset button |
| DC Power Connector Size |
Inner Diameter: 2.10 mm ± 0.1 mm (0.083 in. ± 0.004 in.) Outer Diameter: 5.50 mm ± 0.1 mm (0.217 in. ± 0.004 in.) Depth: 10.0 mm ± 0.5 mm (0.394 in. ± 0.020 in.) |
| DC Voltage/Current |
12 V/1 A, 24 V/1.5 A |
| LEDs |
1 x system LED 3 x port LEDs 3 x signal strength LEDs |
| 2.4 GHz Antenna Gain |
2 dBi |
| 5 GHz Antenna Gain |
13 dBi |
| Power Consumption |
< 9 W (Without PoE Out) ＜24.4W (With PoE Out) |
| IP Rating |
IP55 |
| Colour |
Elegant white |
| Operating Temperature |
–30°C to +55°C (–22ºF to +149ºF) (–40°C to +80°C [–40°F to
+176°F] in publicity materials) |
| Storage Temperature |
–40°C to +85°C (–22ºF to +185ºF) |
| Operating Humidity |
5% RH to 95% RH (non-condensing) |
| Storage Humidity |
5% RH to 95% RH (non-condensing) |
| MTBF |
> 400000 hours |
| Working Distance |
3 km |
| Bridging Performance |
90 Mbps/0.5 km 80 Mbps/1 km (HT40) 60 Mbps/2 km (HT40) 40 Mbps/3 km (HT40) |
| RSSI (dBm) |
-54 dBm/0.5 km -64 dBm/1 km -71 dBm/2 km -75 dBm/3 km |
| Throughput & Camera Limits：3 MP |
18/0.5 km 16/1 km 12/2 km 8/3 km |
| Throughput & Camera Limits：4 to 5 MP |
12/0.5 km 10/1 km 8/2 km 5/3 km |
| Throughput & Camera Limits：6 to 7 MP |
8/0.5 km 7/1 km 5/2 km 3/3 km |
| Throughput & Camera Limits：7 to 8 MP |
5/0.5 km 5/1 km 2/2 km 1/3 km |
| Management Radio |
2.412 GHz ~ 2.472 GHz |
| Number of PtMP Links |
5 |
| ESD Protection |
ESD tolerance: contact discharge=8 kV, air discharge=15
kV |
| Certification |
CE |
| Software |
|
| Operating Mode |
BaseStation/CPE |
| TDMA |
Fixed Mode/Flexible Mode |
| WLAN Security |
WPA2-PSK |
| Management SSID |
@Ruijie-bxxxx |
| Management SSID for Internet Access |
Yes |
| SSID Hiding |
Yes |
| Spectrum Scan |
Yes |
| Antenna Alignment |
Yes |
| One-Touch Pairing |
Yes |
| WMM |
Yes |
| Storm Control |
Yes |
| VLAN Packet Transmit |
Yes |
| DHCP Server |
Yes |
| DHCP Client |
Yes |
| Network Diagnosis |
Ping/Traceroute/DNS Lookup |
| Time & Date |
Yes |
| Firmware Upgrade |
Yes |
| Backup/Restore |
Yes |
| Cloud Management |
Yes |
| Power Configuration |
Yes |
| Country/Region Code |
Yes |
| Remote Restart |
Yes |
| SON (Self-organizing Networking with all Reyee
Devices) |
Yes |
| SNMP |
No |
| Link Aggregation |
No |
| Bridge Speed Test |
Yes |
| Max. Number of Devices on a SON |
200 |
| Ping |
Yes |
| Traceroute |
Yes |
| AI Heatmap |
Yes |
| Package Contents |
|
| Wireless Bridge/Antenna |
1 |
| PoE Injector |
1 |
| DC Power Adapter |
1 |
| Mounting Bracket |
0 |
| Gross Weight |
0.91 kg (2.01 lbs.) |
| Package Dimensions (W x D x H) |
276 mm x 165 mm x 107 mm (10.87 in. x 6.50 in. x 4.21 in.) |
