Ruijie RG-EST450G, 3km Wi-Fi 5 867 Mbps PTMP Wireless Bridge with 120° Antenna
Ruijie
- 3 Gigabit Ports
- Dual Band
- 3 year guarantee
he Ruijie RG-EST450G is a dual band, point-to-multipoint bridge with a 120° antenna that can transmit 867Mbps wirelessly up to 5km on the 5GHz band. (Read more)
PRODUCT DETAILS

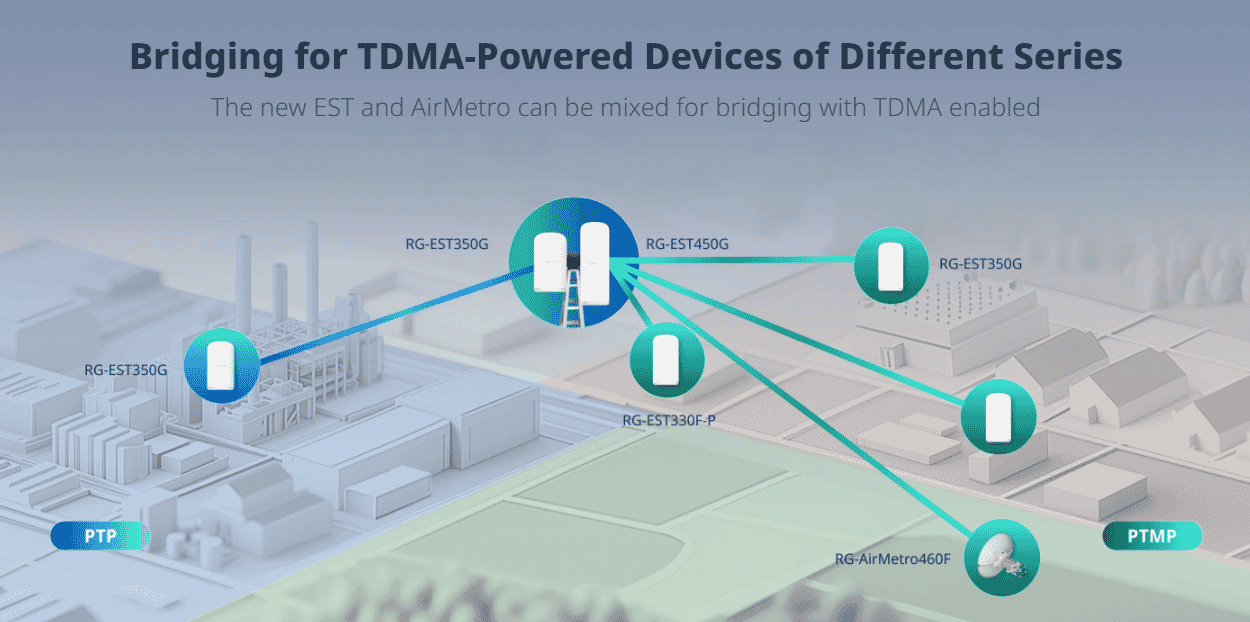

The Ruijie RG-EST450G is a dual band point-to-multipoint 120° bridge that can transmit data wirelessly up to 5km on the 5GHz band, making it ideal for devices that are spread over a large area where cabling is not practical, such as CCTV installations. Operating in the 5 GHz band and supporting 2x2 MIMO technology, this product delivers a maximum wireless rate of 867 Mbps for bridging services, ensuring more than sufficient bandwidth for delivering point to point (PTP) and point to multi-point (PTMP) services. The RG-EST450G utilizes the 2.4 GHz band in single-stream mode for bridge management, while the 5 GHz band is used for data transmission

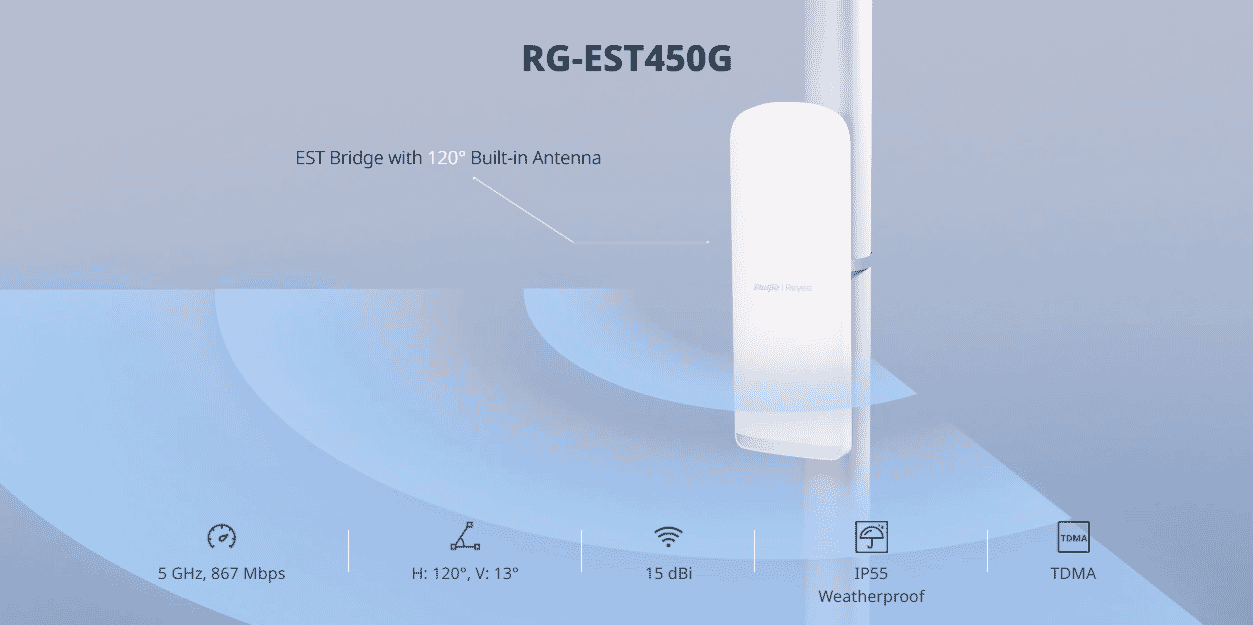

Featuring an integrated 120° horizontal and 13° vertical directional antenna, three Gigabit Ethernet ports, and flexible power options, the RG-EST450G delivers a reliable and adaptable solution for extending network coverage across a wide range of outdoor and remote environments.

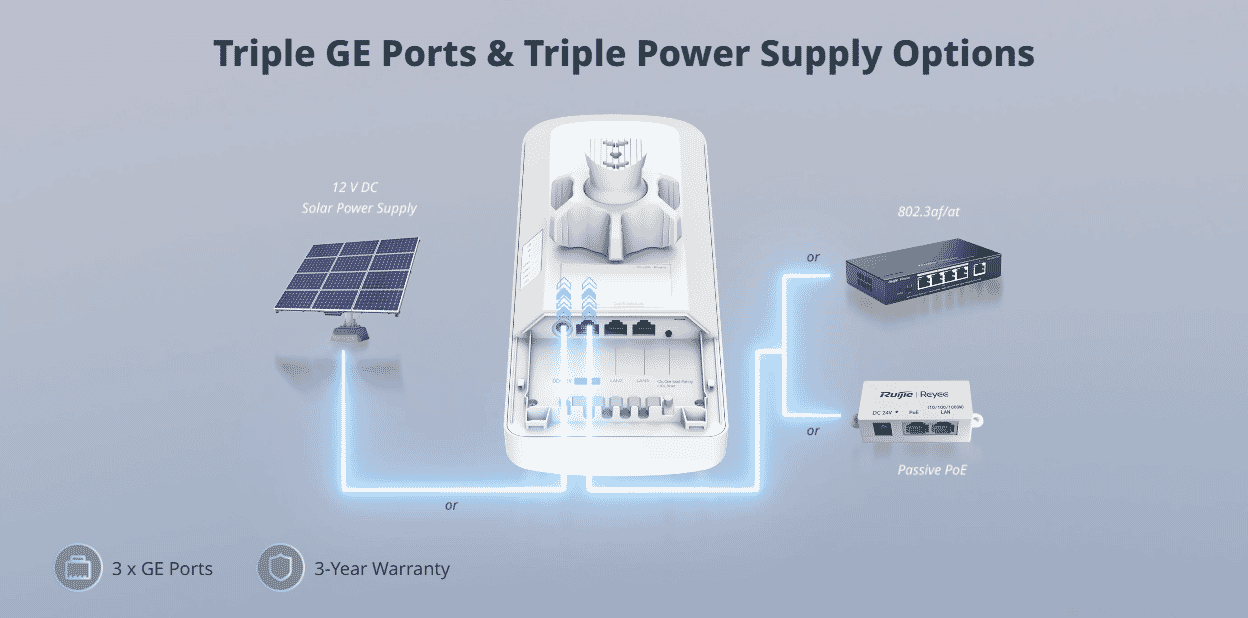

The RG-EST450G supports three flexible power input options—12V DC, Passive PoE, and 802.3af/at PoE—enabling easy integration into a wide range of power infrastructures. This versatility ensures hassle-free deployment in diverse environments without the need for additional power converters.

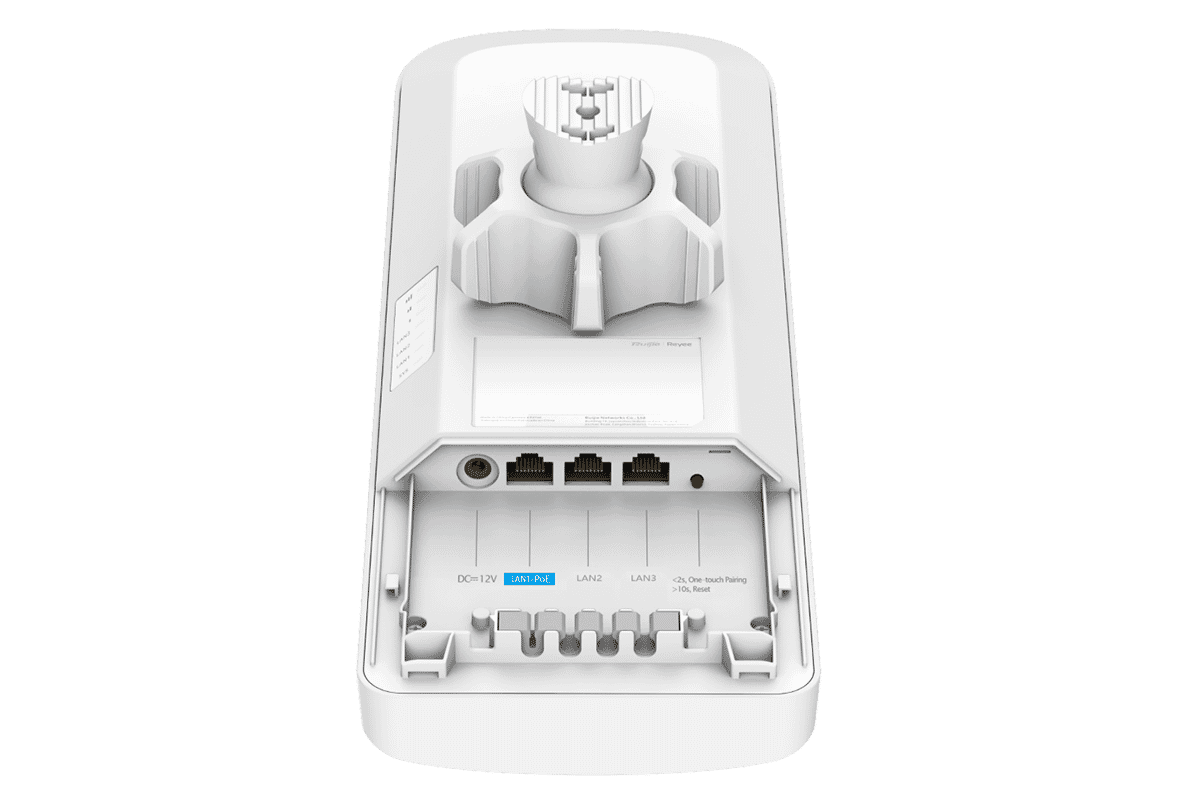

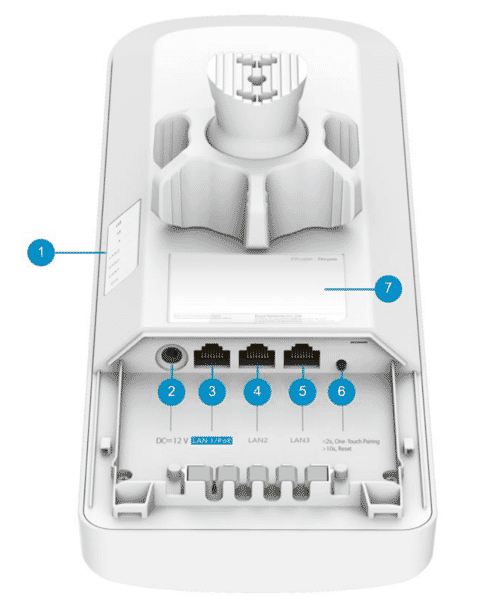

Interface
| No. |
Item |
Description |
|---|---|---|
| 1 |
Status LEDs |
7 status LEDs, including 1 x system
LED, 3 x port LEDs and 3 x signal LEDs |
| 2 |
12 V DC connector |
Support 12 V/1.2 A DC power
supply |
| 3 |
LAN1/PoE Port |
10/100/1000BASE-T Ethernet port,
support 802.3af/at PoE or 24V⎓0.6A passive PoE |
| 4 |
LAN2 Port |
10/100/1000BASE-T Ethernet
port |
| 5 |
LAN3 Port |
10/100/1000BASE-T Ethernet
port |
| 6 |
Reset/One-Touch Pairing
button |
|
| 7 |
Label |
Contains the product name, model, I/O
parameters, default IP address, and other information. |
Features:
- Wireless Point-to-Point Bridge – Ideal for linking buildings, cameras, or remote networks
- 120° horizontal and 13° vertical directional antenna
- Up to 867Mbps wireless throughput for high-speed data transmission
- 3 × Gigabit Ethernet ports for full-speed LAN integration
- Three flexible power input options—12V DC, Passive PoE, and 802.3af/at PoE
- 5GHz frequency band with smart channel selection to reduce interference
- Long-distance coverage – up to 1km line-of-sight (dependent on environment)
- IP65-rated weatherproof housing – Built for reliable outdoor operation
- Integrated LED indicators for signal alignment and status monitoring
- Web-based management interface for advanced configuration (if needed)
| Hardware |
|
| Radio Design |
5 GHz dual-stream 2.4 GHz single-stream |
| 2.4 GHz Band |
Yes |
| 5 GHz Band |
Yes |
| Protocol and Standard |
5 GHz: 802.11ac/n/a 2.4 GHz: 802.11b/g/n |
| Wi-Fi Standard |
Wi-Fi 5 |
| Spatial Streams |
5 GHz dual-stream, 2x2 MIMO 2.4 GHz single-stream |
| 2.4 GHz Channel Width |
Auto/20/40 MHz |
| 5 GHz Channel Width |
Auto/20/40/80 MHz |
| Receiver Sensitivity |
11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps),
-76 dBm (36 Mbps), -71 dBm (54 Mbps); 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15; 11ac: -86 dBm (MCS0), -63 dBm (MCS9) |
| Nominal Receive Sensitivity @20 MHz Channel |
-91 dBm (MCS0) to -57 dBm (MCS9) |
| Nominal Receive Sensitivity @40 MHz Channel |
-83 dBm (MCS0) to -57 dBm (MCS9) |
| Nominal Receive Sensitivity @80 MHz Channel |
-76 dBm (MCS0) to -51 dBm (MCS9) |
| Modulation Levels (Adaptive) |
MCSO (BPSK) to MCS9 (256QAM) |
| Wi-Fi Protocols (2.4 GHz) |
Wi-Fi 4 |
| Wi-Fi Protocols (5 GHz) |
Wi-Fi 5 (IEEE 802.11ac) |
| Wireless Data Rate |
1017 Mbps |
| Wireless Data Rate (2.4 GHz) |
150 Mbps |
| Wireless Data Rate (5 GHz) |
867 Mbps |
| Frequency Bands |
2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Country-specific restrictions apply. |
| 2.4 GHz Max. Transmit Power |
20 dBm |
| 5 GHz Max. Transmit Power |
26 dBm |
| Surge Protection |
Common mode: ±4 kV Differential mode: ±2 kV |
| Dimensions (W x D x H) |
355 mm x 124 mm x 48 mm (13.98 in. x 4.88 in. x 1.89 in.) (without bracket) |
| Weight |
0.83 kg (1.83 lbs.) |
| Number of Fixed LAN Ports |
3 |
| Max. LAN Port Rate |
1000 Mbps |
| Number of 10/100/1000BASE-T Ports |
3 |
| Reset |
Yes |
| Status LED |
Yes |
| Power Supply |
12 V DC or 24 V passive PoE or 802.3af/at |
| Local Power Supply |
Yes |
| PoE Out |
No |
| Supported PoE Standards |
802.3af/at |
| Antenna Type |
Built-in antenna, horizontal 120°/vertical 13° |
| Hardware Button |
1 x reset button |
| DC Power Connector Size |
Inner Diameter: 2.10 mm ± 0.1 mm (0.083 in. ± 0.004 in.) Outer Diameter: 5.50 mm ± 0.1 mm (0.217 in. ± 0.004 in.) Depth: 10.0 mm ± 0.5 mm (0.394 in. ± 0.020 in.) |
| DC Voltage/Current |
12 V/1.2 A, 24 V/0.6 A |
| LEDs |
1 x system LED 3 x port LEDs 3 x signal strength LEDs |
| 2.4 GHz Antenna Gain |
2 dBi |
| 5 GHz Antenna Gain |
15 dBi |
| Power Consumption |
< 12 W |
| IP Rating |
IP55 |
| Colour | Elegant white |
| Operating Temperature |
–30°C to +65°C (–22ºF to +149ºF) (–40°C to +80°C [–40°F to
+176°F] in publicity materials) |
| Storage Temperature |
–40°C to +85°C (–22ºF to +185ºF) |
| Operating Humidity |
5% RH to 95% RH (non-condensing) |
| Storage Humidity |
5% RH to 95% RH (non-condensing) |
| MTBF |
> 400000 hours |
| Working Distance |
5 km |
| Bridging Performance |
200 Mbps/1 km (HT40) 130 Mbps/3 km (HT40) 80 Mbps/5 km (HT40) |
| RSSI (dBm) |
–54 dBm/1 km –62 dBm/3 km –66 dBm/5 km (Pairing with the CPE RG-EST350G) |
| Throughput & Camera Limits：3 MP |
40/1 km 30/3 km 15/5 km |
| Throughput & Camera Limits：4 to 5 MP |
25/1 km 18/3 km 10/5 km |
| Throughput & Camera Limits：6 to 7 MP |
18/1 km 10/3 km 7/5 km |
| Throughput & Camera Limits：7 to 8 MP |
13/1 km 8/3 km 5/5 km |
| Management Radio |
2.412 GHz to 2.472 GHz |
| Number of PtMP Links |
16 |
| ESD Protection |
ESD tolerance: contact discharge=8 kV, air discharge=15
kV |
| Certification |
CE |
| Software |
|
| Operating Mode |
BaseStation/CPE |
| TDMA |
Fixed Mode/Flexible Mode |
| WLAN Security |
WPA2-PSK |
| Management SSID |
@Ruijie-bxxxx |
| Management SSID for Internet Access |
Yes |
| SSID Hiding |
Yes |
| Spectrum Scan |
Yes |
| Antenna Alignment |
Yes |
| One-Touch Pairing |
Yes |
| WMM |
Yes |
| Storm Control |
Yes |
| VLAN Packet Transmit |
Yes |
| DHCP Server |
Yes |
| DHCP Client |
Yes |
| Network Diagnosis |
Ping/Traceroute/DNS Lookup |
| Time & Date |
Yes |
| Firmware Upgrade |
Yes |
| Backup/Restore |
Yes |
| Cloud Management |
Yes |
| Power Configuration |
Yes |
| Country/Region Code |
Yes |
| Remote Restart |
Yes |
| SON (Self-organizing Networking with all Reyee
Devices) |
Yes |
| SNMP |
Yes |
| Link Aggregation |
No |
| Bridge Speed Test |
Yes |
| Max. Number of Devices on a SON |
200 |
| Ping |
Yes |
| Traceroute |
Yes |
| AI Heatmap |
Yes |
| Package Contents |
|
| Wireless Bridge/Antenna |
1 |
| PoE Injector |
1 |
| DC Power Adapter |
1 |
| Mounting Bracket |
1 |
| Gross Weight |
1.61 kg (3.55 lbs.) |
| Package Dimensions (W x D x H) |
415 mm x 185 mm x 113 mm (16.34 in. x 7.28 in. x 4.45 in.) |
