Hikvision DS-7608NXI-K2/8P/VPro 8‑Channel PoE NVR with AcuSense and AcuSeek
Hikvision
- AcuSeek Technology
- 8 PoE Ports
- 3 year guarantee
The Hikvision DS‑7608NXI‑K2/8P/Vpro is a 12MP 8 channel PoE NVR that features AcuSeek intelligent AI technology for rapid event search and retrieval (Read more)
PRODUCT DETAILS
The Hikvision DS‑7608NXI‑K2/8P/Vpro is an 8 channel network video recorder that can record from IP cameras with a resolution up to 12MP, and is designed for advanced IP CCTV systems. Part of Hikvision’s professional I/VPro Series, this NVR combines powerful recording performance with intelligent analytics, including the latest AcuSeek technology for rapid event search and retrieval.
This latest K version offers improved intelligent analytics built into the recorder, with facial recognition, perimeter protection, motion detection 2.0, AcuSearch and AcuSeek all supplied by the recorder.
With built‑in 8‑port PoE, the DS‑7608NXI‑K2/8P/Vpro simplifies installation by powering connected IP cameras directly and automatically configuring network settings. It supports up to 4K UHD resolution for crystal‑clear playback and recording, making it ideal for high‑detail surveillance applications.
The new generation of Hikvision NVR's are also compatible with 3rd party network cameras, which makes updating existing installs even easier and more cost effective.
Hikvision AcuSeek – Intelligent Event Search Made Easy
AcuSeek is Hikvision’s next‑generation intelligent search technology, designed to make locating important video events faster, easier, and more accurate. Instead of manually scrolling through hours of footage, AcuSeek allows operators to instantly filter and find specific events based on people and vehicle detection criteria.
Working seamlessly with AcuSense-enabled cameras and compatible Hikvision NVRs, AcuSeek indexes recorded footage by event type. This enables security personnel to search by human or vehicle targets, detection zones, and even time frames—dramatically reducing search time and improving investigation efficiency.

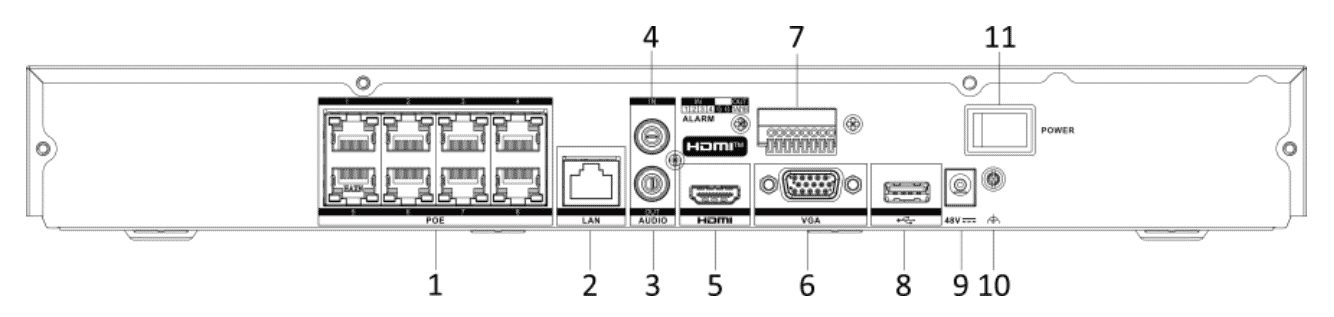

Interface
| No. | Description |
|---|---|
| 1 | Network interfaces with POE
function |
| 2 | LAN interface |
| 3 | Audio in |
| 4 | Audio out |
| 5 | HDMI interface |
| 6 | VGA interface |
| No. | Description |
|---|---|
| 7 | Alarm in and out |
| 8 | USB 3.0 interface |
| 9 | DC 48V power supply |
| 10 | GND |
Features:
- Up to 8-ch AcuSeek and AcuSearch function
- Adopt Hikvision AcuSense technology to minimize manual effort and security costs
- Accurate perimeter protection effectively reduces false alarms
- Automatic cameras connection and configuration
- Up to 8-ch IP camera inputs, plug & play with 8 Power-over-Ethernet (PoE) interfaces
- Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 24-ch@1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 80 Mbps incoming bandwidth
| Intelligent Analytics | |
| AI by NVR | Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek |
| AI by NVR and Camera | Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA |
| AcuSearch | |
| By Camera | All channels *: The camera should enable AcuSearch function |
| AcuSeek | |
| Performance | If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modelling 50,000 targets/day. |
| Search Language | English |
| Perimeter Protection | |
| By NVR | Video analysis (HD network camera,
H.264/H.265) for human and vehicle recognition to reduce false
alarm. Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| By Camera | All channels |
| Facial Recognition | |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| Face Picture Comparison | 8-ch |
| Facial Detection and Analytics Performance | Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| Motion Detection 2.0 | |
| By NVR | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| By Camera | All channels |
| Video and Audio | |
| IP Video Input | 8-ch |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| IP Speaker Input | 4-ch |
| Video Output Mode | HDMI/VGA independent output |
| HDMI 1 Output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz |
| VGA 1 Output | 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz |
| Audio Input | Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding | |
| Decoding Format | H.265, H.265+, H.264, H264+ |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Playback Mode | Normal/Smart, Event, Tag, External File |
| Synchronous playback | 8-ch |
| Live View Window Division | 1/2/4/6/8/9 |
| Decoding Capability | AI on: 12-ch@1080p (30 fps) AI off: 24-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Remote Connection | 128 |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 80W |
| Standard | IEEE 802.3af/at |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| General | |
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovakia, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, TraChinese, Thai, Estonia, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazak, Arabic, Hebrew, Ukrainian, Indonesian |
| Power Supply | 48 VDC, 2.5 A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension (W × D × H) | 384 mm × 317 mm × 52 mm (15.12 × 12.48 × 2.03 inch) |
| ≤ 3 kg (without HDD, 4.0 lb.) | |
| Certification | |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Obtained Certification | CE, CB, REACH, WEEE, UKCA, RCM, IC |
| Videos |
|---|
| No videos available |
| Files |
|---|
| Hikvision DS-7608NXI-K2/8P/VPro Datasheet |
| Hikvision DS-7608NXI-K2/8P/VPro Quick Start Guide |
| Hikvision DS-7608NXI-K2/8P/VPro User Manual |
| Links* |
|---|
| Hikvision website |
| Hikvision support site |
