HiLook DVR-108G-M1/T 2MP MD2.0 8 Channel Fanless Compact DVR
HiLook by Hikvision
- Motion Detection 2.0
- Audio over Coax
- 3 year guarantee
The HiLook DVR-108M1/T is an 8-channel hybrid DVR that has 8 BNC inputs for TVI analogue cameras up to 2MP & 2 IP channels allowing for 5mp IP cameras (Read more)
PRODUCT DETAILS
The HiLook DVR-108G-M1/T is an 8-channel hybrid DVR that has 8 BNC inputs for TVI analogue cameras up to 2MP and 2 IP channels allowing for IP network cameras up to 5MP. In addition, the DVR-108G-M1/T has a separate LAN connection for connecting to a router for Internet access, allowing the camera feed to be viewed using a computer or mobile device.
The DVR-108G-M1/T also features deep learning-based motion detection 2.0, which enables the cameras to only send alerts when a human or vehicle is detected, whilst ignoring non-events such as animals or tress blowing in the wind. AoC (Audio over Coax) allows for both the data and audio signals to be sent over a single coax cable, which speeds up installation time and cuts down on cost.
The DVR-108G-M1/T can be fitted with a single SATA hard drive up to 4TB for storing high-definition recorded footage from the attached cameras.

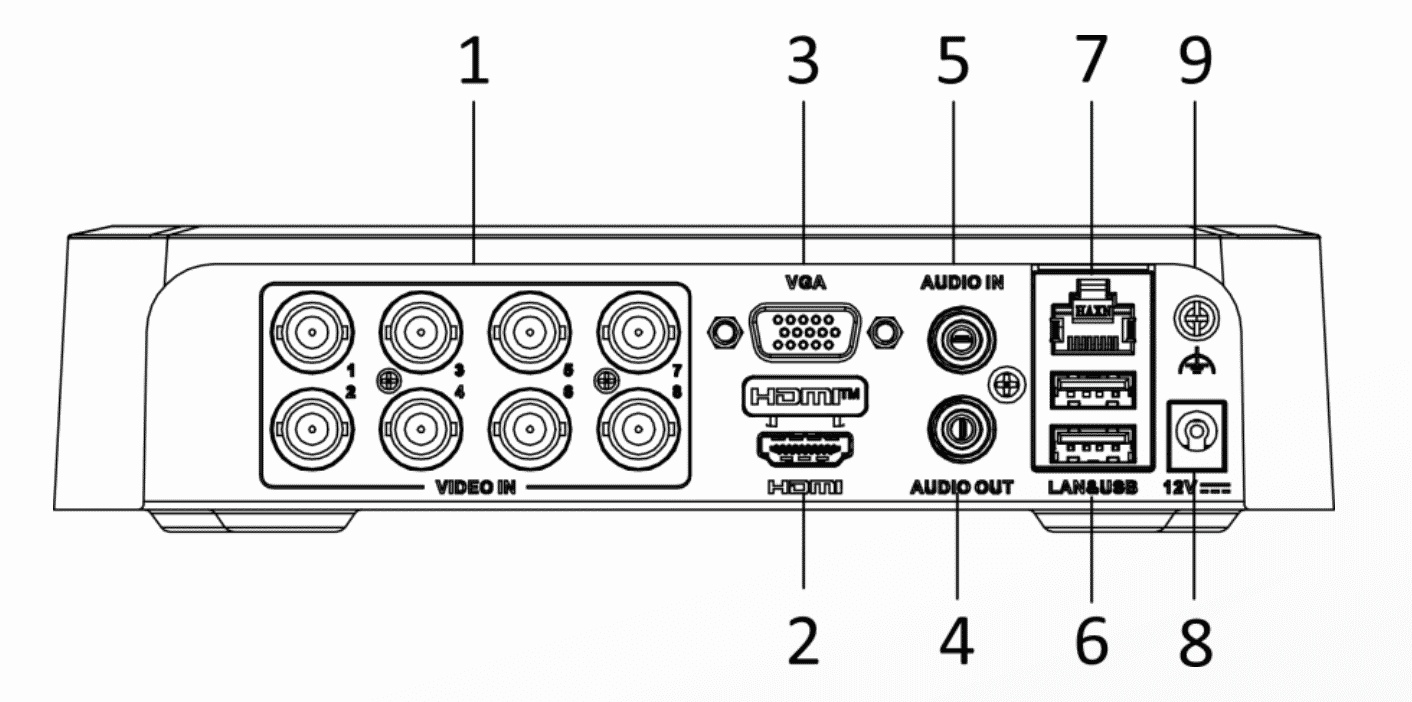

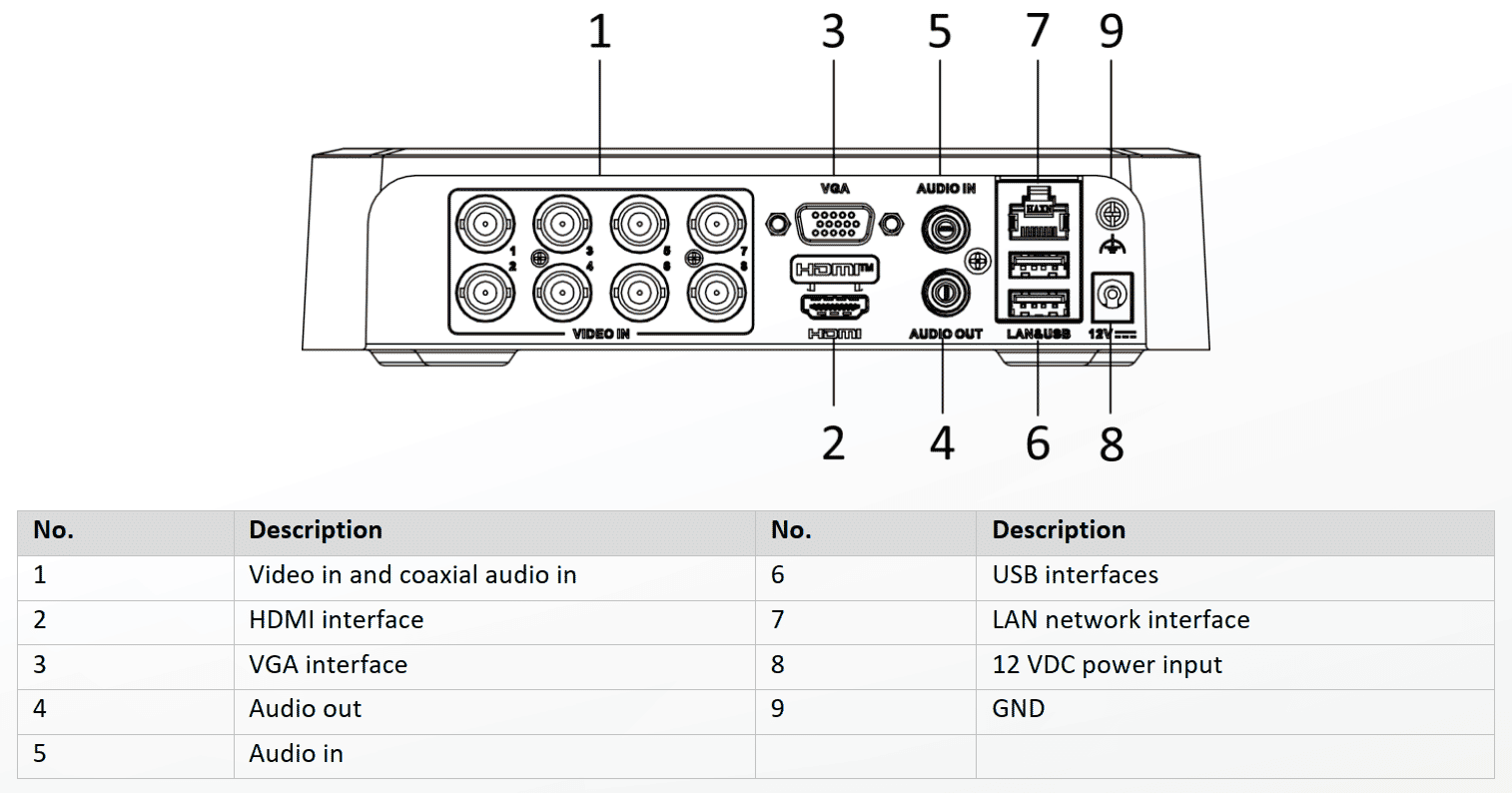

Interface
| No | Description | No | Description |
|---|---|---|---|
| 1 | Video in and coaxial audio
in |
6 | USB interfaces |
| 2 | HDMI interface |
7 | LAN network interface |
| 3 | VGA interface |
8 | 12 VDC power input |
| 4 | Audio out |
9 | GND |
| 5 | Audio in |
Features:
- Support all channels motion detection technology
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/CVI/AHD/IP/CVBS video inputs
- Audio over coaxial cable
- Support all channels HDTVI two-way audio technology
- Up to 10-ch IP camera inputs
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning based motion detection 2.0 is enabled by default
for all analogue channels, it can classify human and vehicle, and
extremely reduce false alarms caused by objects like leaves and
lights; Quick search by object or event type is supported; |
| Video and Audio | |
| IP Video Input | 2-ch (up to 10-ch) Up to 5MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | Support |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Reuse the first audio input |
| Synchronous playback | 8-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | For 1080p stream access: 1080p Lite/720p
Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 72 Mbps |
| Remote Connection | 64 |
| Network Protocol | TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 4 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to +131 °F) |
| Working Humidity | 10% to 90% |

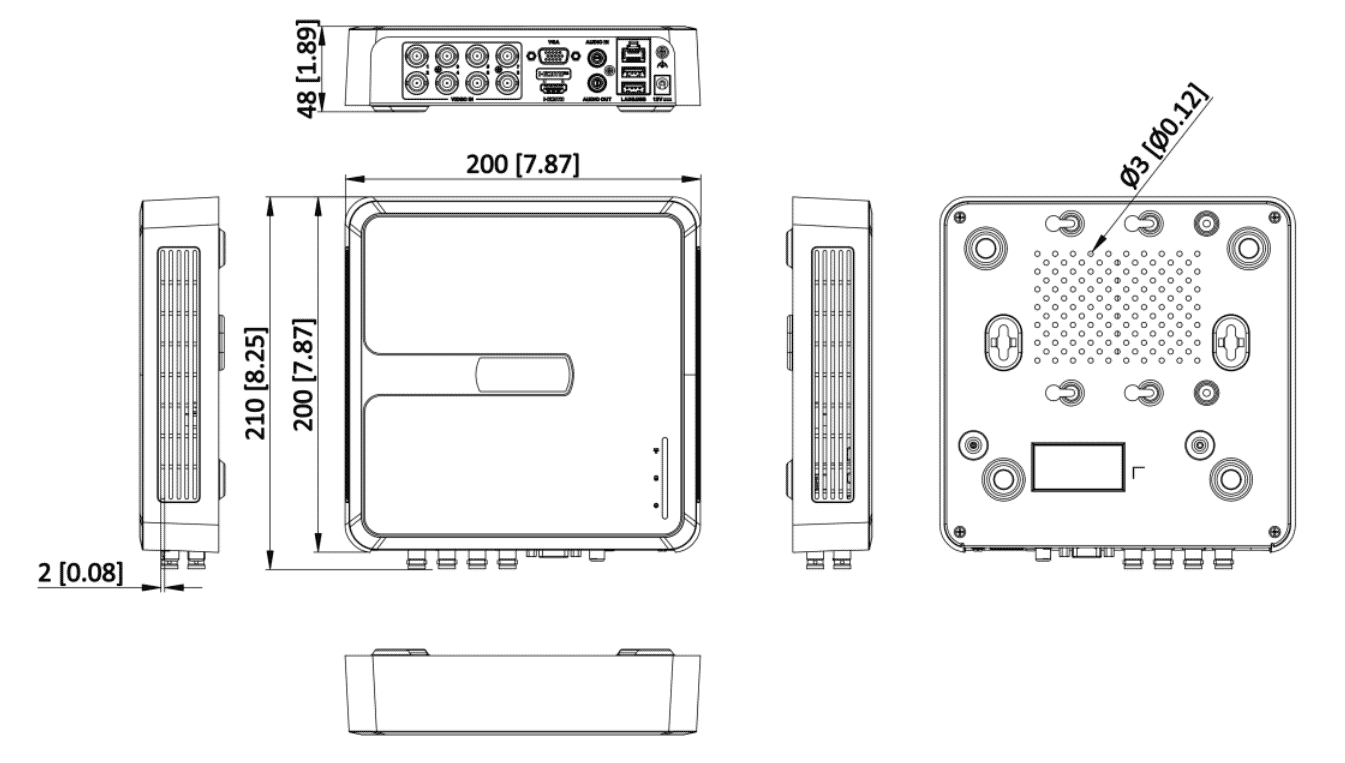

| Dimension (W × D × H) | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
| Videos |
|---|
HiLook DVR Web Interface
HiLook Introduction Video
How To set up a HiLook recorder using a monitor| Files |
|---|
| HiLook DVR-108G-M1/T Datasheet |
| HiLook DVR-108G-M1/T Quick Start Guide |
| HiLook DVR-108G-M1/T User Manual |
| Links* |
|---|
| HiLook by Hikvision website |
| HiLook by Hikvision support site |
