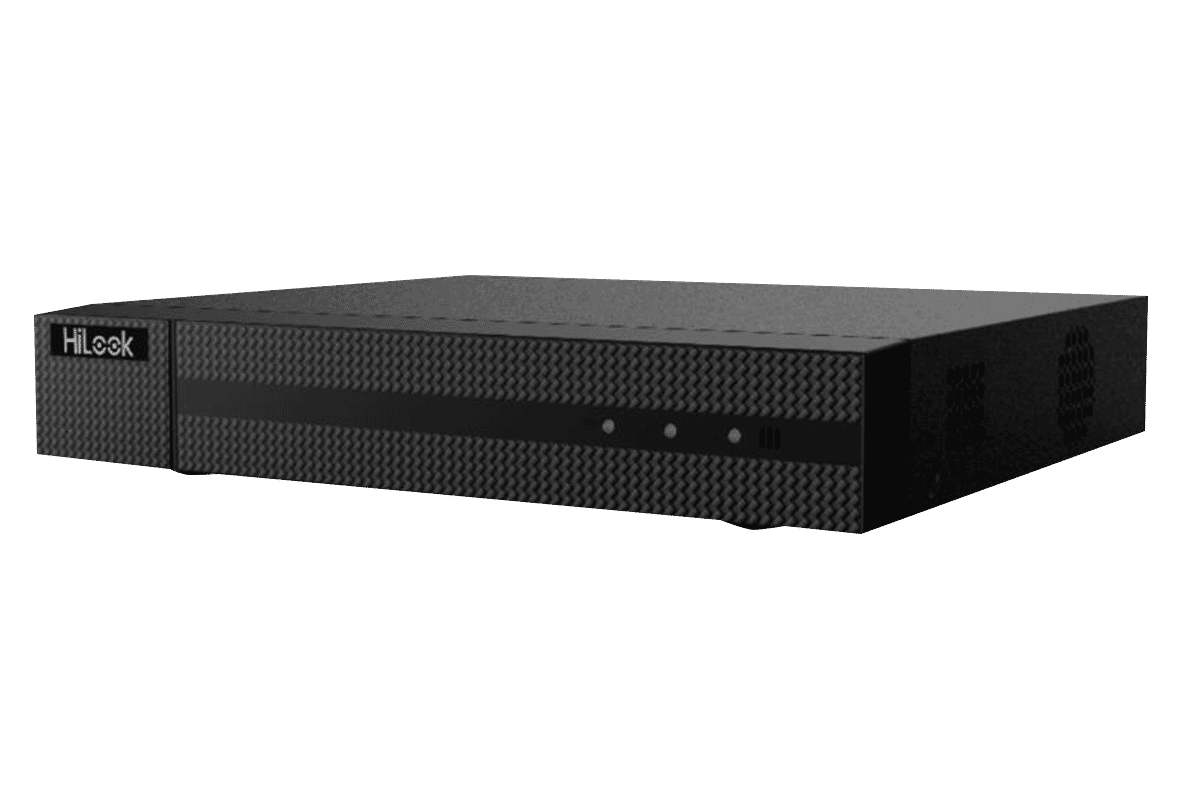

HiLook DVR-208G-M1/T 8-ch 1080p Lite 1U H.265 DVR
HiLook by Hikvision
- Deep Learning
- Audio over Coax
- 3 year guarantee
The HiLook DVR-208G-M1 is an 5MP hybrid digital video recorder (DVR) with 8 analogue BNC inputs & up to 10 IP cameras, with deep learning detection (Read more)
PRODUCT DETAILS
The HiLook DVR-208G-M1 is a 2MP 1080p hybrid digital video recorder (DVR) with 8 analogue BNC inputs that supports analogue HDTVI/AHD/CVI/CVBS cameras, and up to 10 IP camera up to 5MPs. It features intelligent deep learning-based human and vehicle targets classification of Motion Detection 2.0 that only provides notifications when a human or vehicle is recognised, greatly reducing the number of false alarms caused by events such as animals or tree branches blowing in the wind. It also features H.265+ compression technology which greatly reduces both the bandwidth and hard drive storage space required.

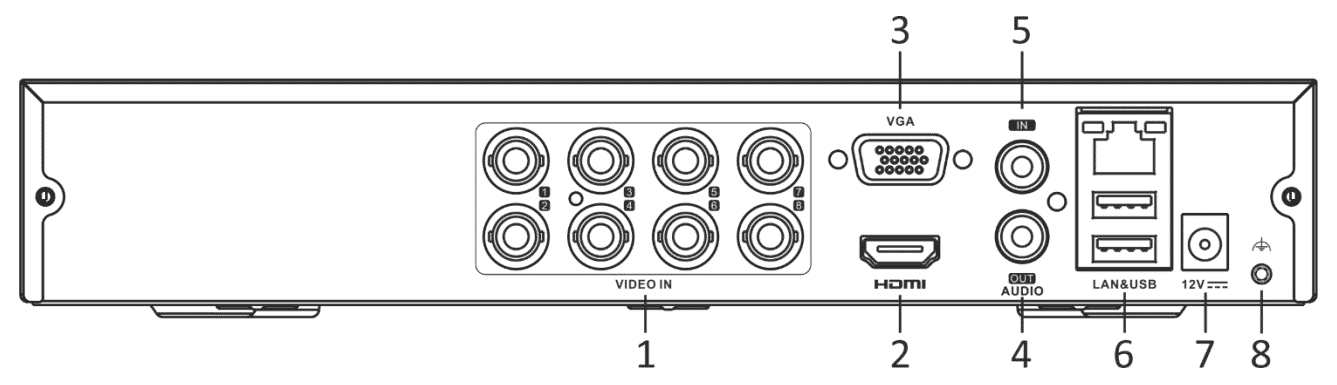

Interface
| No. | Description |
|---|---|
| 1 | Video and coaxial audio in |
| 2 | HDMI interface |
| 3 | VGA interface |
| 4 | AUDIO OUT, RCA connector |
| No. | Description |
|---|---|
| 5 | AUDIO IN, RCA connector |
| 6 | LAN network interface and USB
interface |
| 7 | 12 VDC power input |
| 8 | GND |
Features:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Encoding ability up to 1080p lite @ 15 fps
- Max. 1200 m for 720p HDTVI signal
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default
for all analogue channels, it can classify human and vehicle, and
extremely reduce false alarms caused by objects like leaves and
lights; Quick search by object or event type is supported; |
| Video and Audio | |
| IP Video Input | 2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | Support |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Reuse the first audio input |
| Synchronous playback | 8-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | For 1080p stream access: 1080p Lite/720p
Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 72 Mbps |
| Remote Connection | 64 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 4 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 17 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to +31 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch) |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
| Videos |
|---|
HiLook DVR Web Interface
HiLook Introduction Video
How To set up a HiLook recorder using a monitor| Files |
|---|
| HiLook DVR-208G-M1 Datasheet |
| HiLook DVR-208G-M1 Quick Start Guide |
| HiLook DVR-208G-M1 User Manual |
| Links* |
|---|
| HiLook by Hikvision website |
| HiLook by Hikvision support site |
