HiLook NVR-104MH-C/4P (E) 4-Channel 8MP Motion 2.0 NVR CCTV Recorder
HiLook by Hikvision
- Motion 2.0
- Power over Ethernet
- 3 year guarantee
The HiLook NVR-104MH-C/4P (E) is a 4 Channel POE Network Video Recorder that supports up to 8MP recording resolution with smart motion 2.0 detection (Read more)
PRODUCT DETAILS
The HiLook NVR-104MH-C/4P (E) is an 4 channel IP CCTV network video recorder that supports 4 plug-and-play IP PoE powered IP cameras at up to 8 mega-pixel resolution and one 3.5" SATA hard drive at up to 6TB. It features deep learning-based motion detection 2.0 technology on all channels that only provides notifications when a human or vehicle is recognised, greatly reducing the number of false alarms caused by events such as animals or tree branches blowing in the wind.
The NVR-104MH-C/4P (E) supports H.265+ compression when used with compatible H.265+ IP network cameras. This reduces bandwidth and reduces the storage required enabling recorded footage to be stored for much longer than standard recorders.
HDMI and VGA Live View
The NVR-104MH-C/4P (E) has a 4K HDMI and 1080 VGA output that can be connected to a monitor and used to display live images, recordings or configuration menus. The NVR-104MH-C/4P (E) can display live images on a screen, monitor or TV from one 8-megapixel camera at a time or four 2-megapixel cameras at a time.
Plug and Play PoE Ports
The HiLook NVR-104MH-C/4P (E) has 4 PoE enabled Ethernet ports which can be used to connect up to 4 plug-and-play IP network cameras. This delivers power and video over a single cable making installation quick and simple.

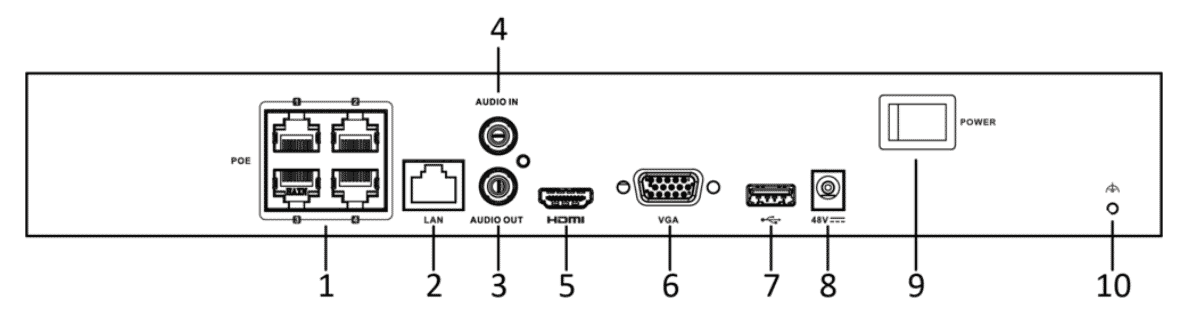

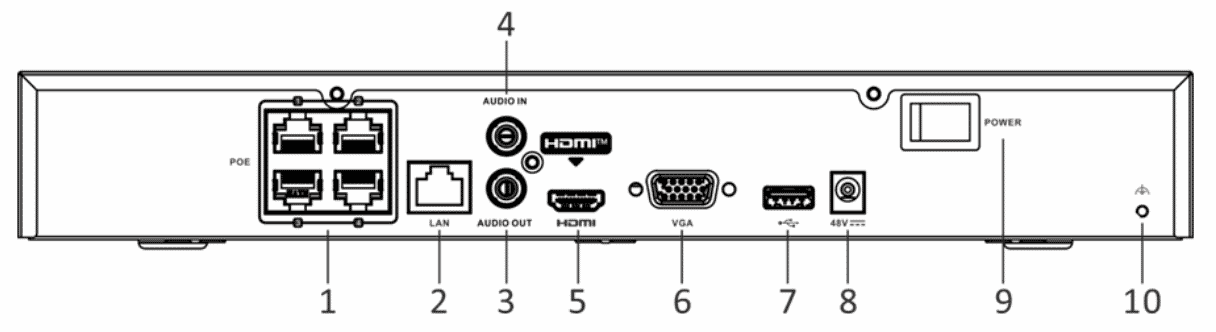

Interface
| No. | Description |
|---|---|
| 1 | Network interfaces with PoE
function |
| 2 | LAN interface |
| 3 | AUDIO OUT |
| 4 | AUDIO IN |
| 5 | HDMI interface |
| 6 | VGA output (DB9 connector) |
| 7 | USB interface |
| 8 | Power supply |
| 9 | Power switch |
| 10 | GND |
Features:
- Up to 4-ch IP camera inputs
- Deep learning-based human and vehicle targets classification of Motion Detection 2.0
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/4-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- H.265+ compression effectively reduces the storage space by up to 75%
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
- 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
- Support multiple VCA (Video Content Analytics) events
- 4 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- HiLookVision for easy network management
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 1-ch;4-ch |
| Video and Audio | |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80Mbps |
| HDMI Output | HDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,;1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;HDMI:,4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz |
| VGA Input | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding | |
| Decoding Format | H.265+,H.265,H.264+,H.264,MPEG4 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 4-ch |
| Decoding Capability | 1-ch @ 8 MP / 4-ch @ 1080p |
| Network | |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 50 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | 48 VDC, 1.35 A |
| Consumption | ≤ 10 W (without HDD and PoE off) |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10% to 90% |
| Chassis | 1U |

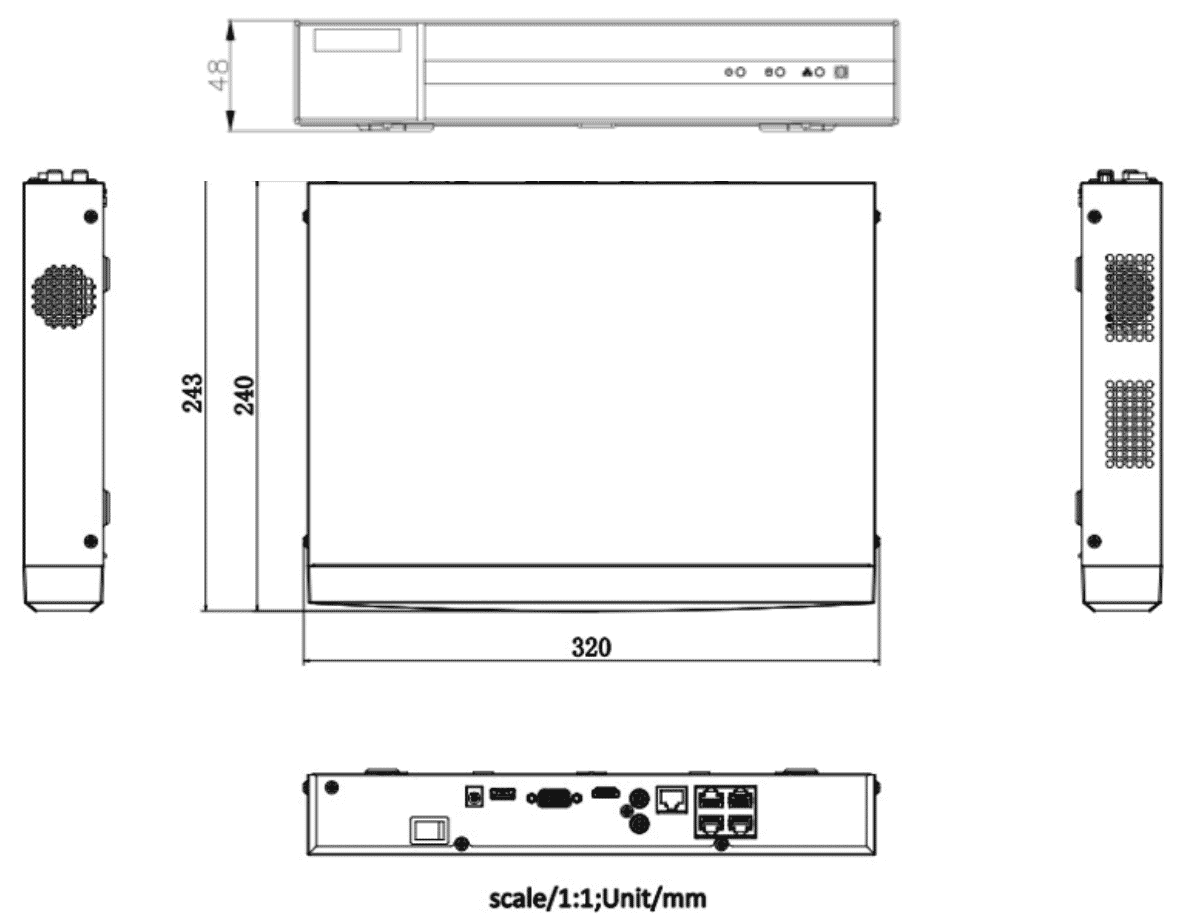

| Dimension (W × D × H) | 265 × 225 × 48 mm (10.2" × 8.9" × 1.9") |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
| Videos |
|---|
HiLook Introduction Video
How To set up a HiLook recorder using a monitor
How To set up a HiLook recorder using a web browser| Files |
|---|
| HiLook NVR-104MH-C/4P Datasheet |
| HiLook NVR-104MH-C/4P Quick Start Guide |
| HiLook NVR-104MH-C/4P User Manual |
| Links* |
|---|
| HiLook by Hikvision website |
| HiLook by Hikvision support site |
