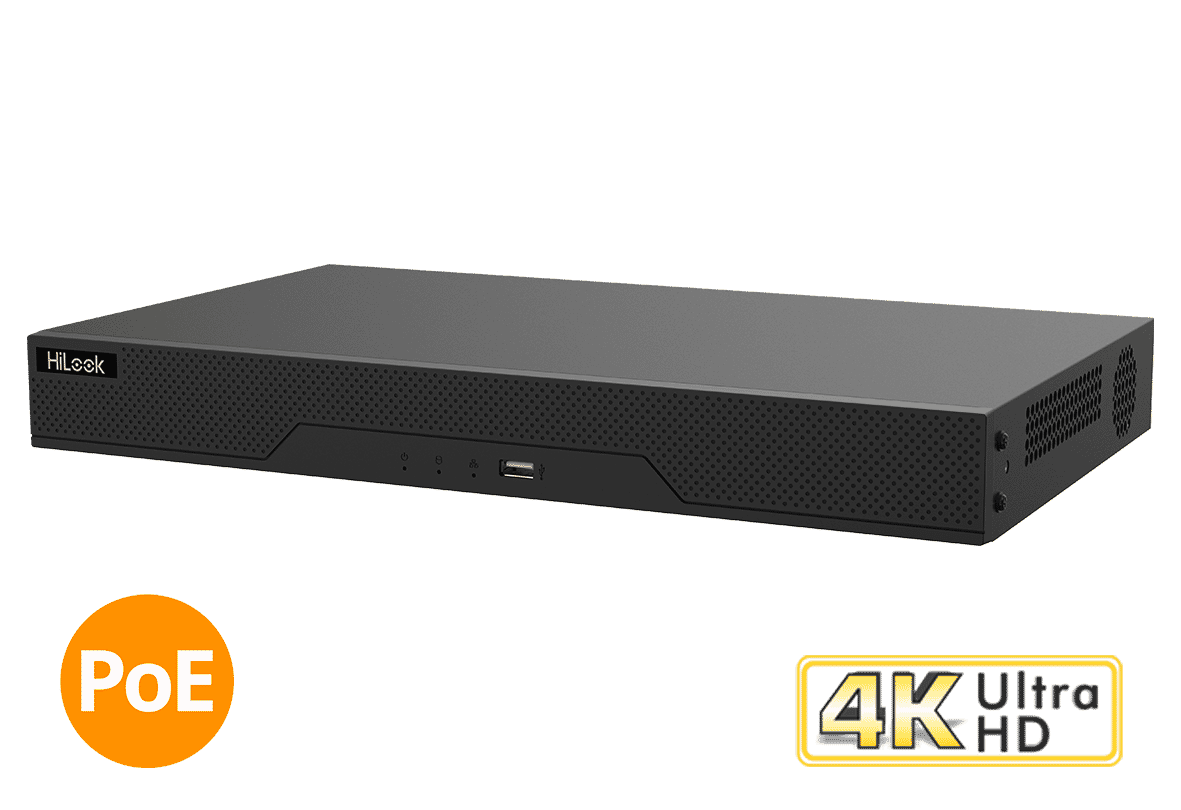

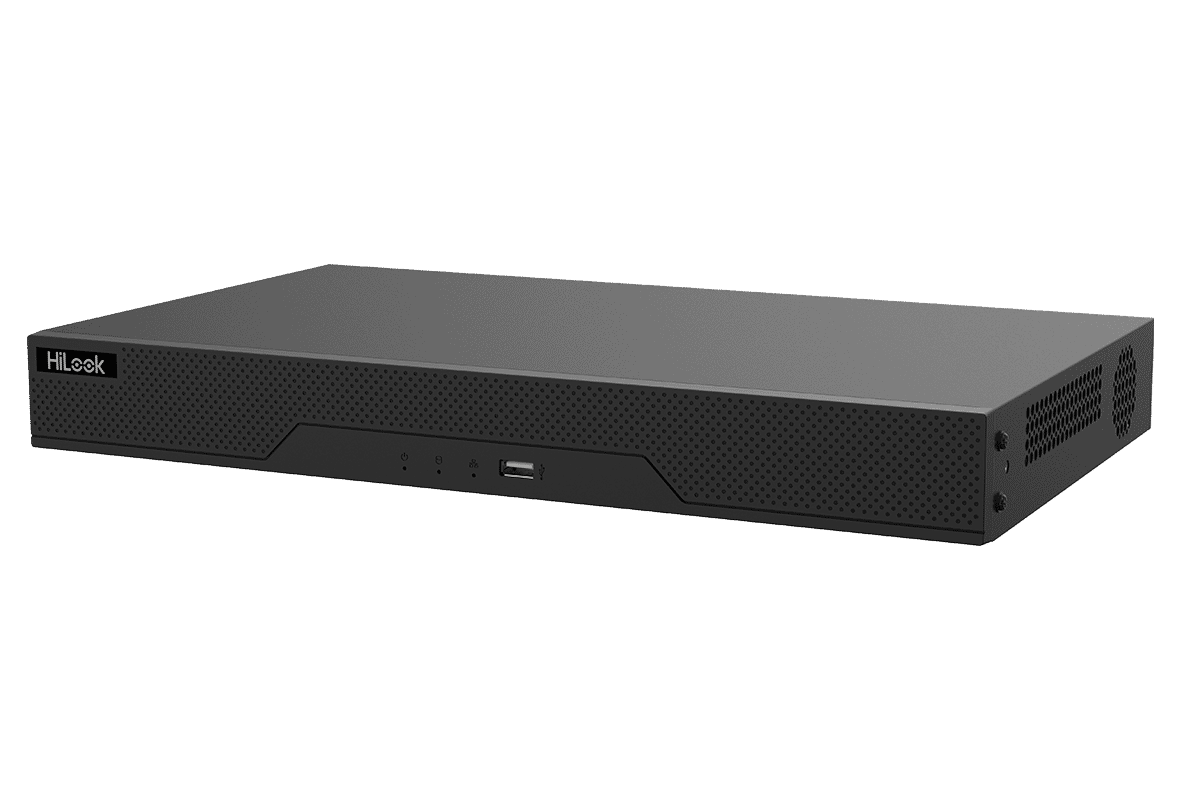

HiLook NVR-208MH-C/8P(E) 8-Channel 8MP IP NVR CCTV Recorder
HiLook by Hikvision
- Motion 2.0
- Power over Ethernet
- 3 year guarantee
The HiLook NVR-208MH-C/8P(E) is an 8 channel IP CCTV network video recorder that supports 8 plug-and-play IP PoE powered IP cameras at up to 8MP 4K. (Read more)
PRODUCT DETAILS
The HiLook NVR-208MH-C/8P(E) is an 8 channel IP CCTV network video recorder that supports 8 plug-and-play IP PoE powered IP cameras at up to 8 mega-pixel resolution and 2 SATA hard drives at up to 8TB each. It features deep learning-based motion detection 2.0 technology on all channels which only provides notifications when a human or vehicle is recognised, greatly reducing the number of false alarms caused by events such as animals or tree branches blowing in the wind.
Interface
| No. |
Description |
|---|---|
| 1 |
PoE Interfaces |
| 2 |
LAN Interface |
| 3 |
AUDIO OUT |
| 4 |
AUDIO IN |
| 5 |
HDMI Interface |
| No. |
Description |
|---|---|
| 6 |
VGA Output (DB9 Connector) |
| 7 |
USB Interface |
| 8 |
Power Supply |
| 9 |
GND |
| 10 |
Power Switch |
Features:
- H.265+ compression effectively reduces the storage space by up to 75%
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
- 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
- 4-ch Motion Detection 2.0
- Support multiple VCA (Video Content Analytics) events
- 8 independent PoE network interfaces
- 1 self-adaptive 10/100 Mbps Ethernet interface
- HiLookVision for easy network management
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 4-ch |
| Video and Audio | |
| IP Video Input | 8-ch |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch，4K（4096x2160）/30Hz，4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz，UXGA（1600×1200）/60Hz，SXGA（1280×1024）/60Hz，720P（1280×720）/60Hz |
| VGA Output | 1-ch, 1080P（1920×1080）/60Hz，UXGA（1600×1200）/60Hz，SXGA（1280×1024）/60Hz，720P（1280×720）/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding | |
| Decoding Format | H.265+,H.265,H.264+,H.264,MPEG4 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | AI&4K Off: 8-ch@1080p(30fps) AI/4K On: 6-ch@1080p(30fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels |
| Synchronous playback | 8-ch |
| Network | |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 80W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 2 |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | 48 VDC or ≤ 120W |
| Consumption | ≤ 10 W (without enabling PoE) |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U |
| Dimension (W × D × H) | 384× 223× 48 mm (15.12" × 8.76" × 1.89") |
| Weight | ≤ 2.6 kg (4.7 lb) |
| Certification | |
| CE | 55032/55035/61000-3-2/61000-3-3/50130-4 |
| Videos |
|---|
HiLook Introduction Video
How To set up a HiLook recorder using a monitor
How To set up a HiLook recorder using a web browser| Files |
|---|
| HiLook NVR-208MH-C/8P Datasheet |
| HiLook NVR-208MH-C/8P Quick Start Guide |
| HiLook NVR-208MH-C/8P User Manual |
| Links* |
|---|
| HiLook by Hikvision website |
| HiLook by Hikvision support site |
