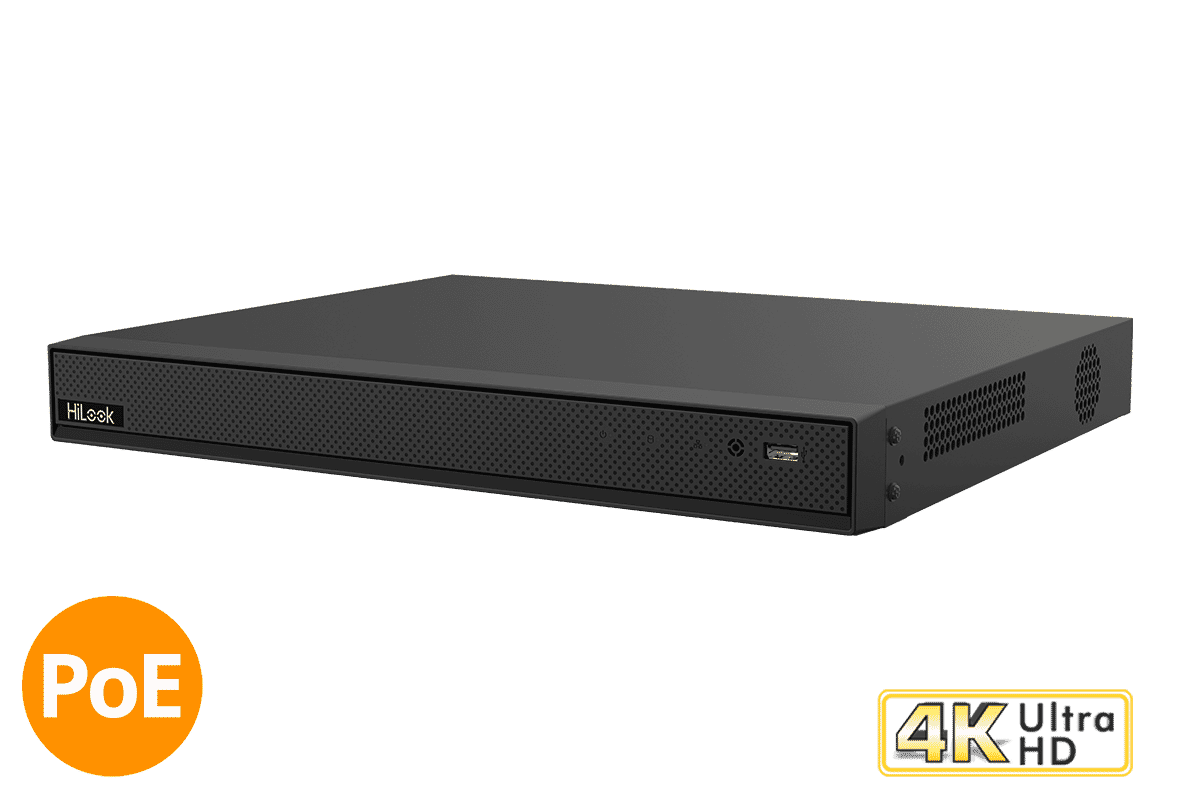

HiLook NVR-216MH-C/16P(E) 16-Channel PoE 8MP Motion 2.0 NVR CCTV Recorder
HiLook by Hikvision
- Motion 2.0
- Power over Ethernet
- 3 year guarantee
The HiLook NVR-216MH-C/8P (D) is a 16 Channel POE Network Video Recorder that supports up to 8MP recording resolution with smart motion 2.0 detection (Read more)
PRODUCT DETAILS
The HiLook NVR-216MH-C/16P(E) is a 16 channel IP CCTV network video recorder that supports 16 plug-and-play IP PoE powered IP cameras at up to 8 mega-pixel resolution and two 3.5" SATA hard drive at up to 8TB. It features deep learning-based motion detection 2.0 technology on all channels that only provides notifications when a human or vehicle is recognised, greatly reducing the number of false alarms caused by events such as animals or tree branches blowing in the wind.
The NVR-216MH-C/16P(E) supports H.265+ compression when used with compatible H.265+ IP network cameras. This reduces bandwidth and reduces the storage required enabling recorded footage to be stored for much longer than standard recorders.
HDMI and VGA Live View
The NVR-216MH-C/16P(E) has a 4K HDMI and 1080 VGA output that can be connected to a monitor and used to display live images, recordings or configuration menus. The NVR-216MH-C/16P(E) can display live images on a screen, monitor or TV from one 8-megapixel camera at a time or four 2-megapixel cameras at a time.
Plug and Play PoE Ports
The HiLook NVR-216MH-C/16P(E) has 16 PoE enabled Ethernet ports which can be used to connect up to 8 plug-and-play IP network cameras. This delivers power and video over a single cable making installation quick and simple.

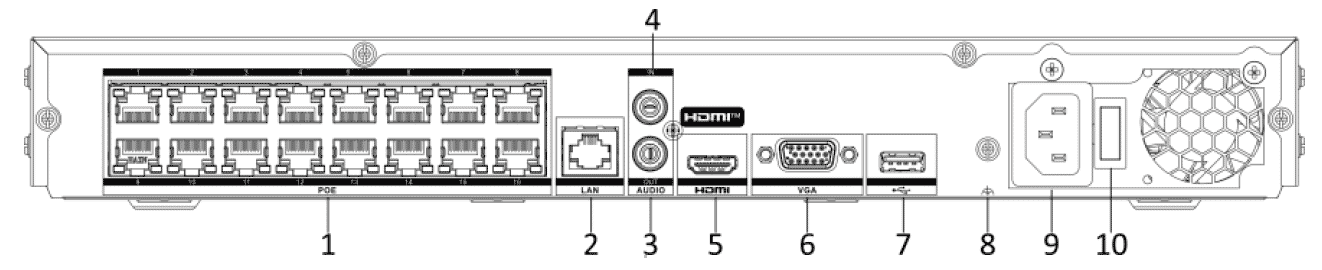

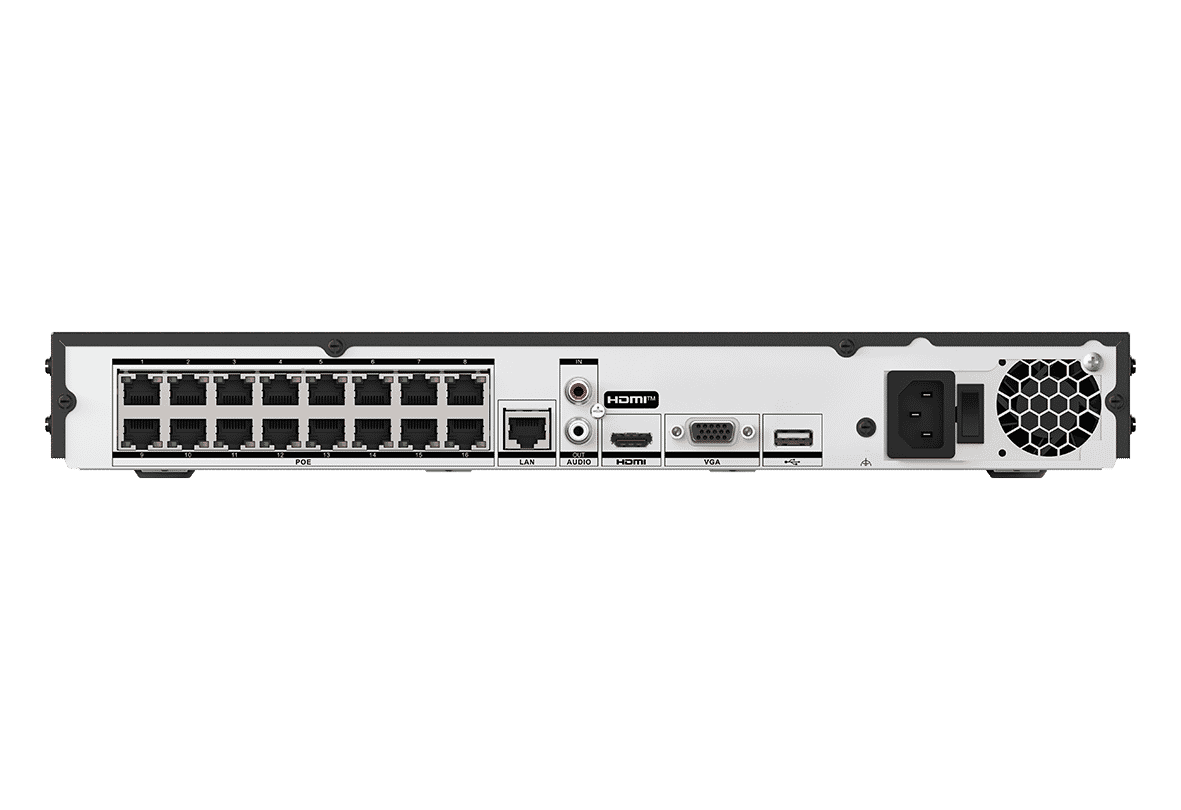

Interface
| No.` | Description |
|---|---|
| 1 | PoE interfaces |
| 2 | LAN network interface |
| 3 | Audio out |
| 4 | Audio in |
| 5 | HDMI interface |
| No. | Description |
|---|---|
| 6 | VGA interface |
| 7 | USB interface |
| 8 | GND |
| 9 | Power supply |
| 10 | Power switch |
Summary of features
- Up to 16-ch IP camera inputs
- Deep learning-based human and vehicle targets classification of Motion Detection 2.0
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
- Up to 80 Mbps incoming bandwidth
- H.265+ compression effectively reduces the storage space by up to 75%
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
- 2 SATA interface for HDD connection (up to 8 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
- Support multiple VCA (Video Content Analytics) events
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- HiLookVision for easy network management
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 4-ch |
| Video and Audio | |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding | |
| Decoding Format | H.265+,H.265,H.264+,H.264,MPEG4 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | AI&4K Off: 8-ch@1080p(30fps) AI/4K On: 6-ch@1080p(30fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels |
| Synchronous playback | 16-ch |
| Network | |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | 150W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 2 |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | AC100V~240V，190W |
| Consumption | ≤ 10 W (without enabling PoE) |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U |
| Dimension (W × D × H) | 384 × 315 × 52 mm (15.12" × 12.38" × 2.03") |
| Weight | ≤ 3.7 kg (8.1 lb) |
| Certification | |
| CE | 55032/55035/61000-3-2/61000-3-3/50130-4 |
| Videos |
|---|
HiLook Introduction Video
How To set up a HiLook recorder using a monitor
How To set up a HiLook recorder using a web browser| Files |
|---|
| HiLook NVR-216MH-C/16P(E) Datasheet |
| HiLook NVR-216MH-C/16P(E) Quick Start Guide |
| HiLook NVR-216MH-C/16P(E) User Manual |
| Links* |
|---|
| HiLook by Hikvision website |
| HiLook by Hikvision support site |
