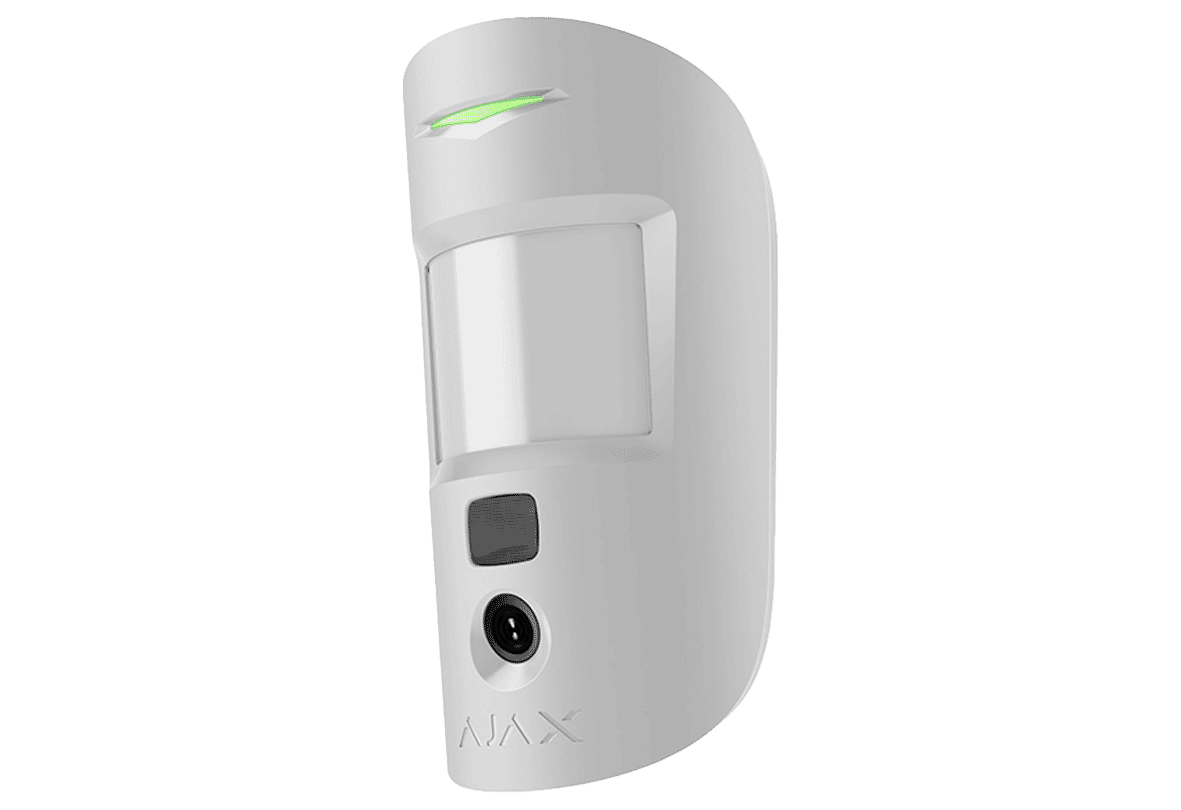

Ajax Superior MotionCam HD (PhOD) Jeweller White - 118274.309.WH1
Ajax
- Built-in HD Camera
- Photo on Demand
- 2 year guarantee
Ajax Superior MotionCam PhOD Jeweller is a wireless PIR with a built in HD camera that sends up to 5 images in GIF format upon detection or on demand (Read more)
PRODUCT DETAILS
The Ajax Superior MotionCam HD Jeweller is a PIR detector that has a built-in camera that takes photos once the detector is triggered, and provides high-quality alarm photo verification with support for both HD1 and HDR. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly verify the threat and respond accordingly. Photo verification relieves users of unnecessary anxiety and prevents security companies from false patrol calls. Users can take an on-demand photo with a single tap to monitor their house's state at any time. The detector can also automatically take photos by an alarm of another device in the system, by a specific schedule, and by arming or disarming.
Thanks to HD technology, details such as faces or text become more clear and recognizable. In turn, HDR further enhances the image by improving colours and contrast, ensuring that photos look more lifelike and are free from overexposed or underexposed areas. The Superior MotionCam HD (PhOD) Jeweller captures and delivers photos at incredible speeds thanks to the TurboWings protocol. Thus, security teams can quickly confirm real threats and respond effectively. Users can take on-demand photos anytime with a single tap in an Ajax app. The device can also be configured to take photos automatically by scenario, by arming/disarming, or according to a set schedule.
When an armed detector identifies motion, it instantly sends an alarm to the hub. A control panel activates the sirens connected to the system, triggers scenarios, and notifies users and the security company. The Ajax app’s log displays all the alarms and events. The notifications contain the hub’s name, the device’s name, and the virtual room to which the detector is assigned.
Features:
- High-definition photo verification for enhanced alarm confirmation
- Photo on Demand (PhOD) allows authorised users to request images at any time
- Automatic photo capture on alarm activation
- Advanced PIR motion detection with a detection range of up to 12 metres
- Pet immunity for animals up to 20kg and 50cm in height
- Secure Jeweller protocol for alarm communication
- Dedicated TurboWings protocol for fast image transmission
- Encrypted two-way communication and anti-sabotage protection
- Tamper detection and device health monitoring
- Easy installation and configuration via the Ajax PRO app
| Specifications |
|
| Compatibility |
Control
panels Hub 2 (2G) Jeweller Hub 2 (4G) Jeweller Hub 2 Plus Jeweller Hub Hybrid (2G) Hub Hybrid (4G) Range extenders ReX 2 Jeweller Ajax devices compatibility |
| Communication |
|
| Jeweller communication technology |
Proprietary wireless communication
technology to transmit alarms and events. Key features:
|
| Frequency bands |
868.0–868.6 MHz |
| Maximum effective radiated power
(ERP) |
up to 20 mW Automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation |
GFSK |
| Radio signal range |
up to 1,700 m Between detector and control panel (or range extender) in an open space. |
| Encrypted communication |
All the data stored and transmitted are
protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency
hopping to prevent interception and jamming. |
| TurboWings communication
technology |
Proprietary wireless communication
technology to transmit photo verifications. Key features:
|
| Frequency bands |
868.0–868.6 MHz |
| Radio signal range |
up to 1,700 m Between detector and hub or range extender in an open space. |
| Encrypted communication |
All the data stored and transmitted are
protected by block encryption with a dynamic key. |
| Frequency hopping |
Radio communication uses frequency
hopping to prevent interception and jamming. |
| Detection |
|
| Sensitive element |
PIR sensor |
| Motion detection distance |
up to 12* m When installed at a height of 2.4 m. |
| Motion detection angles |
horizontal: 88.5° |
| Motion detection speed |
rom 0.3 to 2.0 m/s The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility. |
| Sensitivity |
4 levels Adjusted by PRO or user with admin rights in the Ajax app |
| Pet immunity |
weight: up to 20 kg height: up to 50 cm |
| False alarm prevention |
SmartDetect Software algorithm. |
| Temperature compensation |
Effective motion detection at
temperatures from −10°C to +40°C. |
| Photo
verification |
|
| Photo by Alarm |
A built-in camera is activated if the
detector is armed and motion is detected. |
| Photo on Demand |
The user takes pictures at any time or
when the detector is armed (depending on settings). The feature is
disabled by default. |
| Photo by Scenario |
The detector’s camera takes pictures
automatically when other Ajax detectors are triggered. The feature
is disabled by default. |
| Photo by Schedule |
The detector automatically takes photos
at a specified time. This feature is available for hubs (except Hub
Jeweller) with firmware version OS Malevich 2.19 or
higher. |
| Photo by arming/disarming |
The detector automatically takes photos
when the security state is changed. |
| Adjustable photo resolution |
960 × 720 px 640 × 480 px (by default) 320 × 240 px 160 × 120 px Adjusted by PRO or user with admin rights in the Ajax app. |
| Camera viewing angles |
horizontal: 90° vertical: 50° |
| HDR image |
Improves detail accuracy in bright and
dark scenes. |
| IR illumination |
For night photography and low-light
conditions. |
| Series of pictures |
from 1 to 5 images with a resolution of
320 × 240 px or 160 × 120 px from 1 to 3 images with a resolution of 640 × 480 px or 960 × 720 px Adjusted by PRO or user with admin rights in the Ajax app. |
| Photo delivery time |
up to 3 s — 160 × 120 px
resolution up to 4.5 s — 320 × 240 px resolution up to 11 s — 640 × 480 px resolution up to 15.5 s — 960 × 720 px resolution Photo delivery time depends on the image resolution selected in the device settings. |
| Recommendations |
|
| Recommendations |
It is recommended to install the
detector at a height of 2.4 m. The device is designed for indoor use only. |
| Sabotage
protection |
|
| Tamper alarm |
Notifications on attempts to detach the
detector from the surface or remove it from the mounting
panel. |
| Holding screw |
to secure the detector on
SmartBracket |
| Protection against spoofing |
device authentication |
| Communication loss detection |
after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings. |
| Power supply |
|
| Batteries |
2 × CR123A Pre-installed. |
| Type |
Type C |
| Calculated battery life |
up to 4 years - With Photo on demand
toggle disabled. up to 3 years - With Photo on demand toggle enabled. |
| Detector’s operating voltage
range |
4.2−6.2 V⎓ |
| Detector’s nominal operating
voltage |
6 V⎓ |
| Quiescent detector’s current
consumption at nominal voltage |
0.030 mA |
| Maximum detector’s current consumption
at nominal voltage |
400 mA |
| Full capacity |
1,550 mAh |
| Low battery voltage |
4.705–5.00 V⎓ |
| Low battery recovery voltage |
5.055–5.355 V⎓ |
| End-of-life battery voltage |
3.80 V⎓ Device is switched off. |
| End-of-life battery capacity |
150 mAh |
| Manufacturer |
Panasonic |
| Enclosure |
|
| Dimensions |
135 × 70 × 60 mm |
| Weight of the white device |
170 g |
| Weight of the black device |
157 g |
| Operating temperature range |
from −10 °C to +40 °C |
| Operating humidity |
up to 75% |
| Protection class |
IP50, |
| Colours |
Black or white |
| Complete set |
Superior MotionCam HD (PhOD)
Jeweller SmartBracket mounting panel with holding screw 2 × CR123A batteries (pre-installed) Installation kit Quick start guide |
| AJA0292 | Ajax Superior MotionCam HD (PhOD) Jeweller White | In stock | |
| AJA0291 | Ajax Superior MotionCam HD (PhOD) Jeweller Black | Back order |
| Videos |
|---|
Ajax Superior Range. Rule your space| Files |
|---|
| Ajax Superior MotionCam HD (PhOD) Jeweller Datasheet |
| Ajax Superior MotionCam HD (PhOD) Jeweller User Manual |
