GJD D-TECT X MKIII 30-50M Wireless PIR Motion Detectors

The D-TECT X range of long range outdoor PIR detectors from GJD provide a reliable way to install a network of motion detectors without the hassle of installing alarm and power cables to each location. Up to 16 battery powered D-TECT X detectors can be linked to a receiver up to 500m away which has a physical output for each channel that can be used to trigger lighting, an alarm, a CCTV camera or any other system with inputs.

By using unique channels multiple receivers can be used on a single site to provide comprehensive perimeter protection.

The D-TECT X range of detectors is fully BS8418 compliant and is IP65 rated for continuous outdoor use in all weathers.

There are 3 versions of the D-TECT X MkIII detectors available which offer different detection areas

• GJD430 D-TECT X MKIII 30m x 30m
• GJD440 D-TECT X MKIII 40m x 4m & 40m x 8m (supplied with 2 lenses)
• GJD450 D-TECT X MKIII 50m x 10m

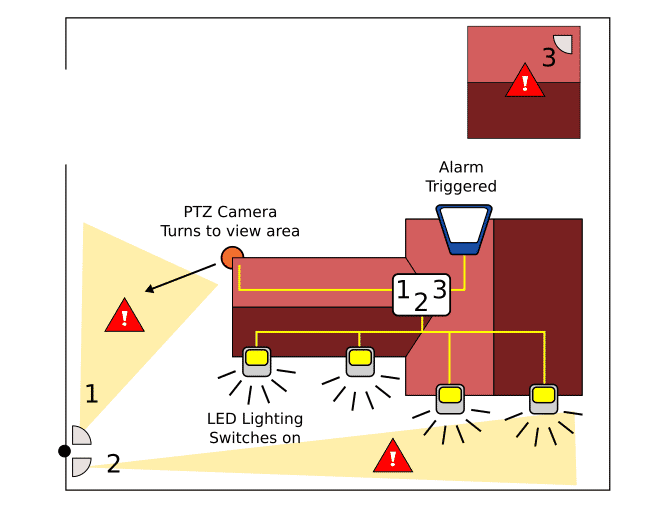

The image below illustrates some examples of how a D-TECT X detection system can be used to trigger multiple devices. PIR 1 is used to turn a PTZ to a preset viewpoint, PIR 2 is used to switch on LED floodlighting and PIR 3 is used to trigger an alarm system. All 3 PIR's in the example are connected to a single wireless receiver that is hard wired to the separate control points for the CCTV, lighting and alarm systems.

On a larger scale the D-TECT X wireless PIR detection system can be used for comprehensive perimeter protection or on a large site where multiple buildings are located.

Features

• Long range 500m line of sight
• Long battery life 1-2 years
• IP65 rated for all weather use
• Choice of 3 detection zones
• up to 50m detection range
• Can be combined to form large system
